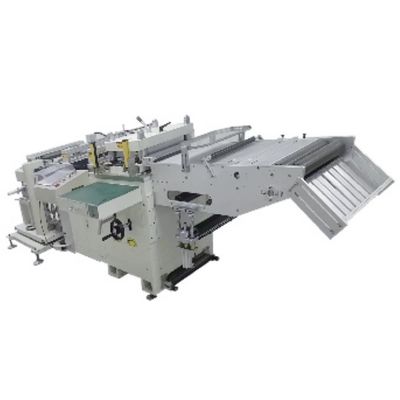

Fully Automatic Battery Pilot Machine Electrode Die Cutter

Fully Automatic Battery Pilot Machine Electrode Die Cutter

Detail Information
Place of Origin
China
Applicable Industries:
Battery Pouch Cell
Maximum Feed Width:
350 Mm
Maximum Molding Size:
330 Mm *320 Mm
Maximum Die-cutting Speed:
30time/Min
Inquired Air Compress:
0.5~ 0.7Mpa
Negative Pressure Required:
-70kpa
Highlight:

Battery Pilot Machine die cutter

,

7KW Battery Pilot Machine

,

fully Automatic electrode die cutter

Product Description
Product Description

The 350 series fully automatic electrode die-cutting machine is mainly used for the fully automatic die cutting and molding of llithium battery electrode materials, as well as the manual sheet receiving process. The equipment reaches the current industry's advanced control technology and optimized design, with a reasonable and compact structure and rigid strength advanced advantages.
Features:
1.Safety protection structure: The moving parts adopt infrared grating, protective baffle, and safety shield structures, providing multiple and effective safety protection for operators.
2.Safety protection structure: The moving parts adopt infrared grating, protective baffle, and safety shield structures, providing multiple and effective safety protection for operators.
3.Multiple sets of large diameter roller passing structures are used to provide a smooth feeding method for materials and reduce damage caused by material bending.
Specification
Maximum feed width
350 mm
Maximum molding size
330 mm × 320 mm
Maximum die-cutting speed
30time/Min
Coil deviation correction accuracy
±0.2mm
Service life of conveyor belt
Recycle for about 20000 times
Power
7KW
Voltage
AC380V±10%
Inquired air compress
0.5~ 0.7Mpa
Negative pressure required
-70kpa
Weight Approximate
1800KG
