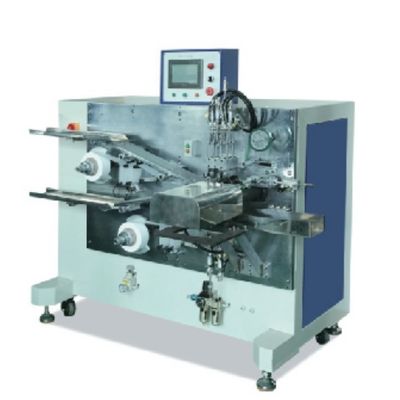

Semi Automatic Battery Electrode Winding Machine

Payment Method:	T/T, Western Union

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

GERUISI

Winding Size:

Diameter: 17-32mm, Length:25-70mm

Roll Diamete:

Max250mm

Winding Accuracy:

Uniformity Better Than 0.5 Mm

Winding Speed:

Max300r/min Can Be Set On The Touch Screen

Film Cutting Method:

Automatic Cut-off

Highlight:

Semi Automatic battery winding machine

Electrode battery winding machine

Electrode Winding lithium ion battery production line

Product Description

Suitable for semi-automatic production of cylindrical lithium ion batteries. This winding equipment has high
winding efficiency, good winding regularity, and is suitable for a wide range of battery sizes. It is more suitable for various
cylindrical battery winding needs in lithium battery laboratories.
Features:
lAutomatic membrane placement, automatic winding, automatic adhesive tape placement and automatic blanking;
lThe electrode plate guide plate can easily adjust the width and adapt to a wide range of electrode plates;
lAutomatic alarm and display of fault location in case of abnormality, convenient for handling;
lMembrane constant tension feeding, good uniformity of core tension;
lAdopt man-machine interface to control the machine, which is simple and intuitive to operate;
lThe operation is easy and easy to learn, which can form productivity as soon as possible.

Specification

Winding method	Volcanic membrane, Chip electrode
Winding form	Pair insertion type roll needle,standard diameter3.5mm
Winding size	Diameter: 17-32mm, length:25-70mm
Winding accuracy	Uniformity better than 0.5 mm
Guide groove length	1200 mm, Electrode piece can be slightly longer
Film cutting method	Automatic cut-off
Winding speed	Max300r/min can be set on the touch screen
Diaphragm roll diameter	Max250mm
Power	1KW
Air source	0.5Mpa ～ 0.7Mpa
