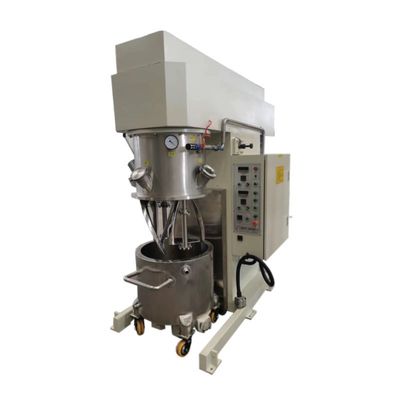

Planetary Mixer Double 30L/60L/100L/200L Battery Slurry Mixing Speed 0-60rpm
  • name
  • name
  • name

Planetary Mixer Double 30L/60L/100L/200L Battery Slurry Mixing Speed 0-60rpm

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Place of Origin
China
Mixer Type:
Planetary Mixer
Material Processed:
Battery Slurry
Range Of Spindle Speed(r.p.m):
0 - 43 R.p.m
Max. Loading Capacity:
30L/60L/100L/200L
Speed:
0~5000r/min
Rotation:
0~84r/min
Highlight:

30L Battery Slurry Mixer

,

vacuum Battery Slurry Mixer

,

100L Battery centrifugal vacuum mixer

Product Description

Planetary Mixer Double 30L/60L/100L/200L Battery Slurry Mixing Speed 0-60rpm



Product Description

Planetary power mixer is a versatile new type that combines the principles of traditional dual planetary mixer and high-speed disperser, and currently has a wide range of applications in many fields Use.
Features:
l. Its high-speed dispersion maximum linear speed can reach 25M/S. The enhanced Fried Dough Twists frame can handle any high viscosity battery paste;
2.A new mixing method - the Fried Dough Twists frame rotates clockwise and counterclockwise to ensure that there is no dead angle and "climbing" phenomenon.
3.In terms of sealing, two sets of mechanical seals plus PT100 Soft and static sealing ensures vacuum - theoretically, sealing performance has been enhanced by 30%.
4. The PT100 temperature sensor directly contacts the material, making the measurement more accurate and faster, with an error of only ± 0.5 ℃.
5. This machine consists of a base, crossbeam, column, sealing cover, material cylinder, transmission and electric control system Group.

Specification
vacuum degree
0.098MPa(static pressure maintaining for 12 hours, above -0.088)
structural style
Single arm type
Rotation speed r/min
Revolution: 0~43r/min, rotation: 0~84r/min (variable frequency speed regulation);
High speed: 0~5000r/min
Low speed Axis
Fried Dough Twists pulp, linear guide rail: Taiwan HIWTN
Lifting mode
Linear guide rail feed cylinder lead screw lifting
Lifting height
A00mm
Scraping the wall
Stainless steel scraper with tetrafluoroethylene scraper
Temperature measurement method
The temperature measurement point on the barrel wall is 1/3 from the bottom of the material cylinder, and a rotating conductive
device is installed inside. The temperature measuring head contacts the material, ensuring accurate temperature measurement.
Can-body positioning:
Use a raised and lowered arc plate to fix the block, and set a convex green structure on the cover to ensure central positioning


Tags:

planetary vacuum mixer,

vacuum mixer machine,

30L Battery Slurry Mixer
