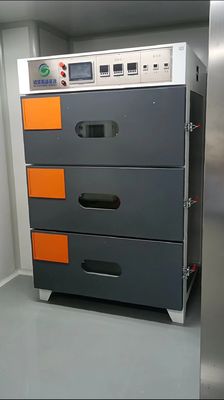

Vacuum Oven Furnace For Battery Electrode With Three-Layers
  • name
  • name
  • name
  • name

Vacuum Oven Furnace For Battery Electrode With Three-Layers

Details Information
Product Description
Detail Information
Brand Name
GERUISI
Model Number
GRS-PT03-B1
Type:
Vacuum Drying Oven For Electrode
Temperature:
150℃
Error:
≤±0.1℃
Highlight:

Vacuum Lab battery oven

,

Electrode battery oven

,

380V vacuum lab oven

Product Description

Vacuum Oven Furnace for Battery electrode with Three-layers



Heating principle
External circulation hot air heating
power supply
380V 50HZ
Air source
Dry gas 0.1-0.2Mpa/ vacuum -0.098-0.1Mpa/ compressed gas 0.4-0.5Mpa
Temperature
Room temperature to 150 ℃
vacuum degree
When pumping to between - 0.1 to -0.098Mpa, the digital display 24H pressure maintaining ≥ 95%
Display error
Set value and stabilized apparent value ≤ ± 0.1 ℃
Thermal insulation performance
Outer wall temperature not exceeding 45 degrees (except for glass doors)
Temperature uniformity
Each point in the inner cavity 50MM away from the wall: ≤ ± 4.5 ℃ under vacuum, ≤ ± 3.5 ℃ under normal pressure
Crosstalk temperature property
≤ 20 ℃ (within 100 degrees of temperature rise of adjacent layers, only within 20 degrees higher than room temperature)
Response speed
Room temperature to 80 °C≤ within 30 minutes to reach the set value, no load core
Temperature stabilization time 60-120 minutes
Vacuum pumping and nitrogen filling positions and interface specifications
The interface is located at the rear of the device; The vacuum connection is DN20 and filled with dry gas The interface is a
412mm gas pipe interface
Tank size (201 material)
350H×850W×800D×3
Overall dimensions
2000H×1270W×1150D
Appearance color (paint baking treatment)
Gray White Orange

Tags:

vacuum lab oven,

benchtop vacuum oven,

vacuum drying chamber
