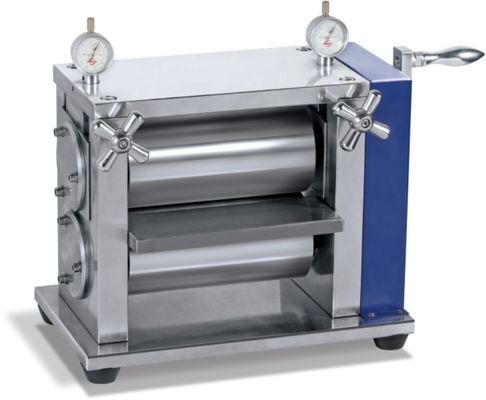

Roller Press Machine Manual For Battery Electrode Calendering Rolling Press

Roller Press Machine Manual For Battery Electrode Calendering Rolling Press

Payment Method: Western Union, T/T
Detail Information
Place of Origin
China
Brand Name
GERUISI
Model Number
GRS-SG150L
Roller Cylindricity:
≤±2um
Rolling Thickness:
0~ 2mm Gap Adjustable
Electrode Width:
0 ~ 150mm
Highlight:

Electrode battery manufacturing machine

,

laboratory battery manufacturing machine

,

laboratory hot rolling press machine

Product Description

Roller Press Machine Manual For Battery Electrode Calendering Rolling Press



Product Description
Mainly suitable for manual rolling press of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and nonferrous materials such as copper and aluminum. This machine adopts gear transmission to achieve roller pressing, with adjustable rolling thickness and convenient use, especially suitable for cleaning, Reducing the thickness and increasing the density of the energy material lithium battery electrode plate.


Specification
Roller diameter
2- Φ96mm
Roller cylindricity
≤±2um
Roller hardness
HRC62
Roller finish
>0.4
Rolling thickness
0~ 2mm gap adjustable
Width
0 ~ 150mm
Feed speed
0 * 40mm/s
Overall dimensions
L278mm * W213mm * H350mm
Weight45
45KG
