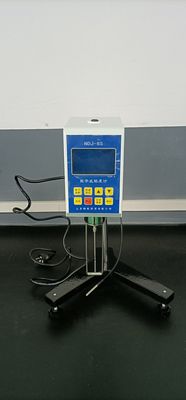

Battery Lab Rotation Slurry Viscometer Instrument
  • name

Battery Lab Rotation Slurry Viscometer Instrument

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Brand Name
GERUISI
Model Number
GRS-NDJ
Measuring Range:
1~100,000 MPa*5(cP)
Accuracy:
±1.0%
Highlight:

Battery Slurry Viscometer

,

Lab Rotation Slurry Viscometer

,

16Bit lab viscometer

Product Description
Product Description
The instrument is a 16-bit microprocessor core control circuit, no gear driven, RTD temperature probe real-time monitoring and measurement of viscosity temperature, blue screen liquid crystal digital display directly display viscosity, speed, percentage torque, rotor number and the selected rotor at the current speed of the maximum viscosity value can be measured. Eye-catching according to the key, stable speed, accurate measurement. Equipped with RTD temperature probe and RS232C standard output interface, data can be saved, compared and recorded after connecting to a PC (optional fully automated data acquisition function via a PC interface).


Specification

1, measuring range: 1 ~ 100,000 mPa•s (cP);

2, rotation speed: 6, 12, 30, 60 (RPM);

3, the number of rotors: randomly configured 1,2,3,4 types of rotors (No. 0 rotor is optional);

4, measurement accuracy: ±1.0%;

5. Reproducibility: 0.50%;

6, power: power adapter (input 220V, 50±1Hz; Output 15V, 1.2A);

7, appearance size: 280 * 105 * 258mm (excluding bracket);

8. Weight: 1.5Kg.

Tags:

lab viscometer,

Battery Slurry Viscometer,

Lab Rotation Slurry Viscometer
