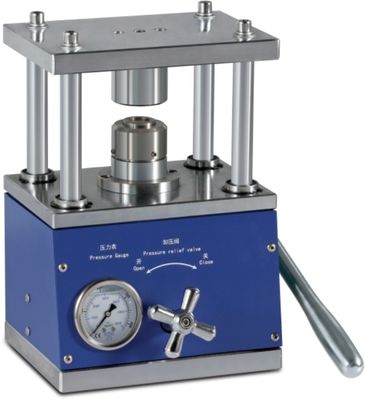

Hydraulic Manual Coin Cell Crimper Machine

Hydraulic Manual Coin Cell Crimper Machine

Payment Method: T/T, Western Union
Detail Information
Brand Name
GERUISI
Model Number
GRS-SF120
Max Speed:
10pcs/Min
Type:
Coin Cell Crimper
Optional:
Dissambling Mold
Highlight:

Hydraulic manual coin cell crimper

,

ODM manual coin cell crimper

,

High Precision coin cell crimper

Product Description
Product Description
* Hand rocker operation force is less than 5kg;
* Hydraulic drive, pressure up to 8T, battery sealing no vibration, no leakage.
* The pressure gauge reading of the normal button battery package pressure is about 80 ~ 100kg/cm², the machine has been adjusted before the factory, such as in special cases need greater pressure (maximum pressure 200kg/cm², about 8 tons of pressure) to consult the manufacturer before adjustment;
* The mold uses high-precision positioning ring limit to control the height of the battery package, so as not to cause the battery seal damage if the package pressure is too large and unstable;
* With the function of preventing battery sealing short circuit;
* Structure material: high strength chromium steel, the surface after environmental protection electroplating and spraying treatment no rust;
* Dimensions: 223mm * 170mm * 325mm;
* Weight: 25kg.

* The lower die uses a high-precision positioning ring limit to control the height of the battery package, so as to avoid the damage of the sealing cup in case the package pressure is too large and unstable.
* The inner ring of the upper die sealing cup is equipped with a screw spring core mechanism to ensure that in case the battery is stuck when it is sealed, the button battery can be pushed out forcefully by twisting the top screw. * Built-in safety relief oil valve, the pressure can be adjusted according to need, and the upper pressure limit can be set to prevent the damage caused by excessive pressure caused by misoperation, to ensure the safe use of the machine.
* Built-in pressure gauge, can observe and accurately control the size of the seal pressure.
* Specially designed hydraulic structure, easy to operate.
* Precision mold design ensures accurate and reliable sealing molding, solid steel structure design, stable and safe use.
* Small size, easy to operate, can be placed in the glove box operation.

Specification

Structure material
Alloy aluminum and high-strength chromium steel, with environmentally friendly electroplating treatment on the surface, never
rusting
Texture of material
Adopt mold material imported from Japan
Operating force of hand lever
≤5kg
Overall dimensions
232mm×165mm ×320mm
Weight
25kg
Hydraulic Manual Coin Cell Crimper Machine 0
