Grooving Cylindrical Battery Assembly Machine Lithium Cell Machinery Semi Automatic
  • name

Grooving Cylindrical Battery Assembly Machine Lithium Cell Machinery Semi Automatic

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Brand Name
GERUISI
Model Number
GRS-GC650
Rolling GrooveDeepth:
1.2～2.0mm(Adjustable)
Rolling Groove Width:
1.1～1.5mm((according To The Thickness Of The Hob)
Highlight:

Grooving battery assembly machine

,

Lithium Cell battery assembly machine

,

Cylindrical lithium cell machinery

Product Description
Product Description

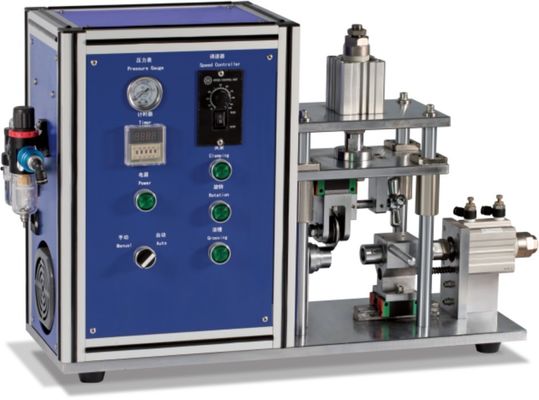

The semi-automatic cylindrical battery groove rolling machine is suitable for uniformly rolling cylindrical steel shells (or
capacitor aluminum shells) containing battery cells. The standard 18650 can also be replaced with some fixtures and fixtures to process various cylindrical battery grooves.
Features:
1.Adjustable rolling groove size, high accuracy, and stable size;
2.Small size, safe and reliable, exquisite and beautiful;
3.Can process various cylindrical battery rolling grooves;
Specification
Rolling groove depth
1.2～2.0mm(Adjustable)
Rolling groove width
1.1～1.5mm((according to the thickness of the hob)
Processing viscosity
±0.1mm
Hob life
>1 million times
capacity
Semi automatic 400 EA/H
Voltage
AC220V/50Hz
Power
140W
Compressed air
0.5MPa～0.7MPa
Product size
600X 450X 350mm
Weight
35kg
Grooving Cylindrical Battery Assembly Machine Lithium Cell Machinery Semi Automatic 0
