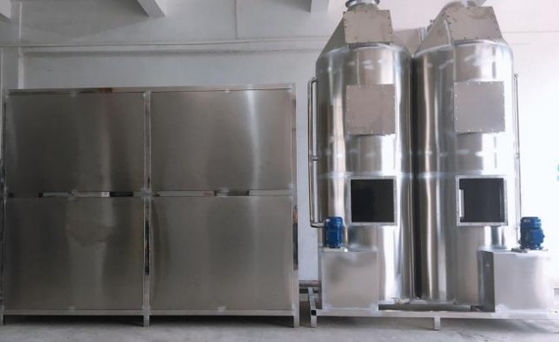

Name: 10000M3/H Battery Coating Machine NMP Recovery System
Brand: WUHAN GRACE NEW ENERGY CO., LTD.
SKU: GRS10000SL-PLT
Availability: InStock

Payment Method:	T/T, Western Union

Details Information

Product Description

Detail Information

Brand Name

GERUISI

Model Number

GRS10000SL-PLT

Recovery Rate::

≥99%

Processing Capacity:

10000m ³/ H;

Highlight:

NMP Battery Coating Machine

NMP recovery Battery Coating Machine

10000M3/H NMP recovery system

Product Description

Product Introduction

1. In the production of coating machine, the maximum working condition process exhaust air is generated by 10000M3/h, and NMP is achieved in the positive process exhaust air.

Solvent recovery, to build a new NMP recovery system to achieve the purpose of energy saving and environmental protection.

2. The recovery system adopts the process method of water absorption after cooling of circulating water (spray enrichment + water washing gas) to recover NMP, which is economical

Under the premise of the maximum to meet the customer in the lithium battery production process of the coater exhaust NMP gas recovery requirements.

For positive coater, maximum exhaust air volume 10000M3/H. Configure a 10000M3/H NMP recovery system for the positive coater to meet emission standards

Technical parameters:

1. Recovery rate: ≥99%

2. Recovery concentration: ≥80%

3. Tail gas emission concentration: < 30 mg/m3

4. Installed power 12KW

5. Air duct included

Device name	Model	Qty
NMP reclaims the system host	GRS-10000SL-PLT-I	1 set
Spray tower	GRS-10000-PLT	1 set( 2 tower)
Cooling tower	LY-40T	1 set
Liquid storage tank	GRS-CYG	1 pc

Tags:

NMP recovery system,

NMP Solvent System,

NMP Battery Coating Machine

10000M3/H Battery Coating Machine NMP Recovery System
