Battery Short Circuit Tester 25V~1000V 1mA

Battery Short Circuit Tester 25V~1000V 1mA

Payment Method: T/T, Western Union
Detail Information
Brand Name
GERUISI
Model Number
GRS-RJ6901
Voltage/ Current:
25V~1000V 1mA
Highlight:

25V Battery Test Equipment

,

Short Circuit Battery Test Equipment

,

25V battery resistance tester

Product Description

Equipment composition:

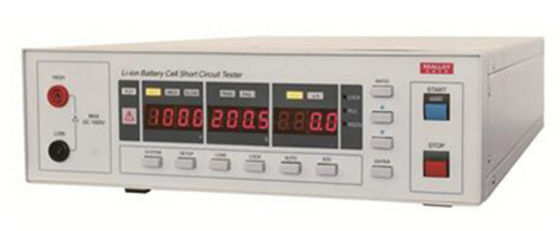

RJ6901 is a short circuit tester designed for the capacitive load of the battery cell, the output voltage is 25V ~ 1000V arbitrary setting, 1V step; The test result is determined by the insulation impedance value or the leakage current value. Built-in comparator, timer, can meet different standard requirements, setting parameters can be stored in the instrument, up to 100 sets of storage.

RJ6901 standard with PLC interface and RS232 interface, with PLC or computer control easy to implement

Now automatic control.



Features:

* 25V ~ 1000V continuous voltage output, 1V step, the corresponding insulation impedance test range is listed below:

25V to 100V 0.05M to 1000M

101V to 250V 0.1M to 2000M

251V to 1000V 0.25M to 4000M

* The internal discharge module of the instrument, discharge resistance 20kΩ, the charge can be released after the test is completed, the test is safer;

* Fast charging, suitable for cell measurement;

*100 memory groups, setting parameters can be saved to the instrument, easy to call;

* Upper and lower limit comparator, over-limit sound and light alarm;

* With delay judgment, for the capacitive test product, in the delay time does not add judgment, only in the test time judgment;

* Both front and rear panels have test terminals, which are convenient for field application;

* Standard RS232 communication, and PLC remote control port, easy to PLC control;

* Continuous test, support manual line test.



Technical indicators:

function Technical indicators
Output voltage/resolution/accuracy 25V~1000V/1V/± (2% x set value+2V)
Test voltage/resolution/accuracy 25V~1000V/1V/± (2% x displayed value+2V)
Maximum current 1mA
Output method Floating ground
Isolation voltage ±1000V
Ripple 5Vp-p (1000V no-load); 10Vp-p (1000V full load)
Load adjustment rate 1% (full load to empty load)
rise time 15ms (empty Umax)
Automatic discharge 20k Ω (discharge 200ms/time constant RC of 1uF capacitor at 1000V)
Delay Time Accuracy from 0.1s to 999.9s: ± (0.1% x set value+0.1s)
Testing time Accuracy from 0.5s to 999.9s: ± (0.1% x set value+0.1s)
Insulation impedance Resistance: 2.000M Ω~ 200.0M Ω± (2% x measured value+5 words)
200M Ω~ 4000M Ω± (5% x measured value+5 words)
  Capacity: 2.000M Ω~ 200.0M Ω± (5% x measured value+5 words)
200M Ω~ 4000M Ω± (10% x measured value+5 words) (tested at 100nF)
Display parameters Insulation resistance/leakage current
comparator Upper/Lower Limit
Auto detect Continuous testing, high voltage continuous output
Sampling speed Fast/Medium/Slow
Storage parameters 100 sets
External interface RS232/PLC
Usage environment 0℃~40℃/20%RH~70%RH
Power supply AC220V,50Hz
weight 7.2kg
Appearance size 300mm×88mm×380mm(W×H×D)








products
PRODUCTS DETAILS
Battery Short Circuit Tester 25V~1000V 1mA
Payment Method: T/T, Western Union
Detail Information
Brand Name
GERUISI
Model Number
GRS-RJ6901
Voltage/ Current:
25V~1000V 1mA
Payment Terms:
T/T, Western Union
Highlight

25V Battery Test Equipment

,

Short Circuit Battery Test Equipment

,

25V battery resistance tester

Product Description

Equipment composition:

RJ6901 is a short circuit tester designed for the capacitive load of the battery cell, the output voltage is 25V ~ 1000V arbitrary setting, 1V step; The test result is determined by the insulation impedance value or the leakage current value. Built-in comparator, timer, can meet different standard requirements, setting parameters can be stored in the instrument, up to 100 sets of storage.

RJ6901 standard with PLC interface and RS232 interface, with PLC or computer control easy to implement

Now automatic control.



Features:

* 25V ~ 1000V continuous voltage output, 1V step, the corresponding insulation impedance test range is listed below:

25V to 100V 0.05M to 1000M

101V to 250V 0.1M to 2000M

251V to 1000V 0.25M to 4000M

* The internal discharge module of the instrument, discharge resistance 20kΩ, the charge can be released after the test is completed, the test is safer;

* Fast charging, suitable for cell measurement;

*100 memory groups, setting parameters can be saved to the instrument, easy to call;

* Upper and lower limit comparator, over-limit sound and light alarm;

* With delay judgment, for the capacitive test product, in the delay time does not add judgment, only in the test time judgment;

* Both front and rear panels have test terminals, which are convenient for field application;

* Standard RS232 communication, and PLC remote control port, easy to PLC control;

* Continuous test, support manual line test.



Technical indicators:

function Technical indicators
Output voltage/resolution/accuracy 25V~1000V/1V/± (2% x set value+2V)
Test voltage/resolution/accuracy 25V~1000V/1V/± (2% x displayed value+2V)
Maximum current 1mA
Output method Floating ground
Isolation voltage ±1000V
Ripple 5Vp-p (1000V no-load); 10Vp-p (1000V full load)
Load adjustment rate 1% (full load to empty load)
rise time 15ms (empty Umax)
Automatic discharge 20k Ω (discharge 200ms/time constant RC of 1uF capacitor at 1000V)
Delay Time Accuracy from 0.1s to 999.9s: ± (0.1% x set value+0.1s)
Testing time Accuracy from 0.5s to 999.9s: ± (0.1% x set value+0.1s)
Insulation impedance Resistance: 2.000M Ω~ 200.0M Ω± (2% x measured value+5 words)
200M Ω~ 4000M Ω± (5% x measured value+5 words)
  Capacity: 2.000M Ω~ 200.0M Ω± (5% x measured value+5 words)
200M Ω~ 4000M Ω± (10% x measured value+5 words) (tested at 100nF)
Display parameters Insulation resistance/leakage current
comparator Upper/Lower Limit
Auto detect Continuous testing, high voltage continuous output
Sampling speed Fast/Medium/Slow
Storage parameters 100 sets
External interface RS232/PLC
Usage environment 0℃~40℃/20%RH~70%RH
Power supply AC220V,50Hz
weight 7.2kg
Appearance size 300mm×88mm×380mm(W×H×D)
