1500W laser welding machine for Lithium ion Battery cell welder

1500W laser welding machine for Lithium ion Battery cell welder

Payment Method: T/T, Western Union
Detail Information
Brand Name
GERUISI
Model Number
GRS-ZHC1500W
Power:
1500W
Regional Moving Format:
X800 Y600
Z-axis Height:
Adjustment Range 200mm
Output Power Instability:
<1%
Beam Quality:
M²<1.3
Laser Power Consumption Power:
2kw
Power Consumption Of Water Tank:
1.5kw
Product Description

Laser welding machine for battery cell welder

Laser welding Equipment model: GRS-ZHC1500W

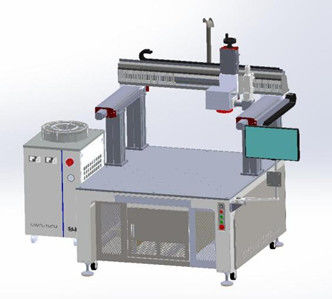

Appearance of (I) equipment:1500W laser welding machine for Lithium ion Battery cell welder 0

(The picture is for reference only, subject to the actual product)



(II) equipment size (for reference only)

1500W laser welding machine for Lithium ion Battery cell welder 1

(III) equipment introduction:

1. The scanning range of galvanometer is 150*150mm, and the part out of range is welded through xy axis moving area;

2. Regional moving format x800 y600;

3. The distance between the vibrating lens and the welding surface of the workpiece is 335mm, and products with different heights are used after adjusting the z-axis height;

4. Manual adjustment of z-axis height, adjustment range 200mm;

5. The galvanometer scanning welding system is adopted to reduce the movement time of the shaft and the welding efficiency is higher;

6. The worktable adopts a gantry structure, the product does not move, and the laser head is moved and welded to reduce the wear of the moving shaft;

7. The laser workbench is designed in an integrated way, and the workshop is arranged in different positions, thus saving the floor space;

8. The large aluminum plate table top is smooth and beautiful. The table top is equipped with 100*100 mounting holes, which is convenient to lock the fixture;

9. The lens protects the air knife and uses high-pressure gas to isolate the spatter generated during welding (it is recommended that the compressed air pressure be more than 2kg).



(IV) Laserwelding software introduction:

1. PC control, friendly interface, easy to learn;

2. Welding path can teach acquisition programming, can import (dxf) file;

3. The process window is rich, and the appropriate parameters can be set according to the needs;

4. According to different product setting procedures and process parameters, can be recorded after saving and can be reused.

5. Linear mode (straight line, wavy line, circle) a variety of variable, improve the quality of welding.



1500W laser welding machine for Lithium ion Battery cell welder 2



(V) laser parameters:

Model GRS-ZHC1500W
Maximum output power 1500W
center wavelength 1070±10nm
Output power instability <1%
beam quality M²<1.3
Fiber Length 20m
Fiber core diameter 100um
Working mode Continuous or modulated
Laser power consumption power 2kw
Power consumption of water tank 1.5kw
Working environment temperature 5-45 ℃
Working environment humidity <75%
Cooling mode Water cooling
power supply demand 380V ± 10% ,50Hz,60A




(VI) configuration list:

Serial Number Accessory Name Model Remarks
1 fiber laser welding machine GRS-ZHC1500W
2 Laser 5M-0150HC 1500W
3 Chiller cwfl-150AN Double temperature control chiller
4 laser output head 15GB two-dimensional optical galvanometer scanning head
5 software system ZJH23P-B Moving format galvanometer welding system
6 Host rack Module Travel x800y600z200 sheet metal cabinet
7 Electrical control ----------
8 Computer host

Main frequency above 2.7GHz

Memory 4G

Solid State Drive/win7
9 servo system 400W
10 lead screw/guide rail Grinding screw Repositioning accuracy 0.03mm
11 Protection window quartz lens
