16 channel Automatic CR2032 CR24XX Coin cell Crimping Coin Cell Crimper Machine

Payment Method:	T/T, Western Union

Details Information

Product Description

Detail Information

Brand Name

GERUISI

Model Number

GRS-GFK20-16

Max Speed:

16pcs/time

Crimper Pressure:

0-1.5T Adjustable

Optional:

16 Channel

Product Description

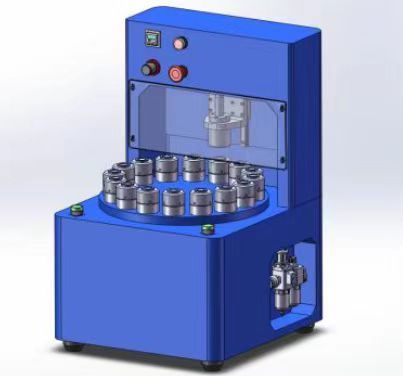

Rotary 16 channels Automatic CR2032 CR24XX Coin cell Crimping Coin Cell Crimper Machine

MachineProduct Description

This device is mainly suitable for a small 16 station button battery packaging machine. The packaging machine uses a cam splitter to rotate the lower mold and a cylinder to drive the upper mold for packaging. It can package button batteries such as CR2016, CR2025, CR2032, etc. It can be placed in a glove box and operated in an Ar gas environment. The device has packaging pressure adjustment and display functions, and a constant packaging pressure is set for each packaging to ensure consistency in the experiment

Main Features:

Adopting a rotary 16 station system, a batch of 16 button type batteries are packaged to improve packaging efficiency;
Through human-machine and button setting programs, automatically package and loop packaging;
The packaging mold is made of mold steel material;
The packaging pressure can be adjusted and displayed;
The equipment has automatic and manual operation functions;
The equipment is easy to clean and replace molds;
Small size, can be placed in a glove box and operated in an Ar gasification environment

Specification

Applicable specifications	Standard CR2032 mold (optional CR2016, CR2025, CR2325, CR2450 molds)
Crimper pressure	0-1.5T adjustable, digital pressure gauge (recommended for packaging CR20XX series button battery packaging pressure not exceeding 0.8T)
power supply	1KW
Size	Overall dimensions of the working part L550x W600x H840mm External dimensions of control box L460x W380x H260mm
Weight	260KG

Tags:

Products

Payment Method:	T/T, Western Union

Detail Information

Product Description

Detail Information

Brand Name

GERUISI

Model Number

GRS-GFK20-16

Max Speed:

16pcs/time

Crimper Pressure:

0-1.5T Adjustable

Optional:

16 Channel

Payment Terms:

T/T, Western Union

Product Description

Rotary 16 channels Automatic CR2032 CR24XX Coin cell Crimping Coin Cell Crimper Machine

MachineProduct Description

Main Features:

Adopting a rotary 16 station system, a batch of 16 button type batteries are packaged to improve packaging efficiency;
Through human-machine and button setting programs, automatically package and loop packaging;
The packaging mold is made of mold steel material;
The packaging pressure can be adjusted and displayed;
The equipment has automatic and manual operation functions;
The equipment is easy to clean and replace molds;
Small size, can be placed in a glove box and operated in an Ar gasification environment

Specification

Applicable specifications	Standard CR2032 mold (optional CR2016, CR2025, CR2325, CR2450 molds)
Crimper pressure	0-1.5T adjustable, digital pressure gauge (recommended for packaging CR20XX series button battery packaging pressure not exceeding 0.8T)
power supply	1KW
Size	Overall dimensions of the working part L550x W600x H840mm External dimensions of control box L460x W380x H260mm
Weight	260KG
