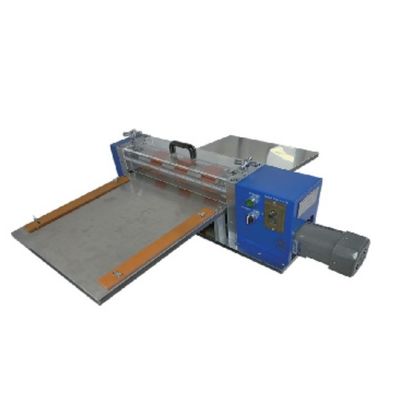

GRS-FT300 Lithium Ion Battery Slitting Machine for Electrodes Cutting
  • name
  • name
  • name
  • name
  • name
  • name

GRS-FT300 Lithium Ion Battery Slitting Machine for Electrodes Cutting

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
GERUISI
Applicable Industries:
Battery Electrode Slit Cut
Knife Width:
10-345mm;
Cutting Thickness:
50-400 μ M Battery Electrode;
Cutting Speed:
<2m/min, Adjustable Knob;
Highlight:

85mm electrode slitting machine

,

Lithium Ion electrode slitting machine

,

Lithium Ion battery slitting machine

Product Description
Product Description

*Adjustable guide device for feeding positioning;

*Adopting electric rolling and slitting method;

*Adjustable meshing amount;

*The upper and lower blades are driven at the same speed and synchronously;

*Equipped with an organic glass protection device at the hob for safe operation;

*Open end roller fixing method for easy disassembly of the roller;

*High cutting accuracy and reliable operation.


Equipment composition: *This machine is composed of upper and lower hobs, hob brackets, feeding and discharging positioning plates, gears, reducers, motors, and frames. *The main components are the upper and lower rolling knives, which are composed of steel knives and rubber knives spaced apart.
Specification
Cutter type
upper and lower circular knives for opposite cutting
Knife width
10-345mm;
Knife spacing
standard configuration 56mm, 56mm, 56mm, 58mm, 58mm, 58mm (optional other spacing);
Cutting thickness
50-400 μ M battery electrode;
Cutting capacity:
 adjustable handwheel 0.2-0.4mm
Cutter diameter
85mm
Knife material
ultrafine particle alloy steel;
Width adjustment
Spacer adjustment
Cutting speed
 <2m/min, adjustable knob;
Device size
L1400*W800*H700mm
Power
0.5KW
Overall dimensions
 length 850 * width 620 * height 300 (mm)
Weight
100KG
GRS-FT300 Lithium Ion Battery Slitting Machine for Electrodes Cutting 0
