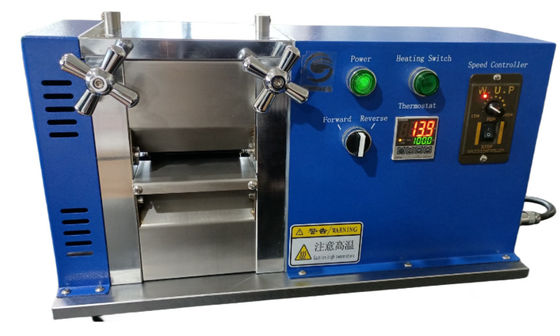

Electric Roller press Machine for Battery Electrode Calendering Rolling Press
  • name
  • name
  • name
  • name
  • name
  • name

Electric Roller press Machine for Battery Electrode Calendering Rolling Press

Payment Method: Western Union, T/T
Details Information
Product Description
Detail Information
Place of Origin
China
Roller Cylindricity:
≤±2um
Rolling Thickness:
0~ 2mm Gap Adjustable
Tablet Width:
0 ~ 100mm/150mm/200mm/300mm
Application:
Battery Electrode Roll Press
Highlight:

adjustable electric roller press

,

Battery Electrode electric roller press

,

Roller electrode calendering machine

Product Description

Electric Roller press Machine for Battery Electrode Calendering/ Rolling Press



Product Description
Mainly suitable for electric rolling press of battery materials in the laboratory, a small amount of precious metal materials such as gold and silver, and nonferrous materials such as copper and aluminum. This machine adopts gear transmission to achieve roller pressing, with adjustable rolling thickness and convenient use, especially suitable for cleaning, Reducing the thickness and increasing the density of the energy material lithium battery electrode plate.
Features:
1.Horizontal operation, suitable for small film production;
2.The motor can be rotated forward and backward, making it convenient to return materials if problems are found during operation;
3.The pressing thickness and speed are adjustable and convenient to use;
4.Adopt gear transmission to achieve roller pressing

Specification
Roller diameter
2- Φ96mm
Roller cylindricity
≤±2um
Roller hardness
HRC62
Roller finish
>0.4
Rolling thickness
0~ 2mm gap adjustable
Tablet width
0 ~ 100mm
Roll placement
Horizontal placement
Operation mode
electric
Voltage and frequency
AC220V/50Hz
power
120W
Feed speed
0 * 40mm/s
Other advantages
Pressing thickness, speed adjustable
Overall dimensions
L500mm*W360mm*H620mm
Weight

70KG



Tags:

electrode calendering machine,

heat press roller machine,

hot rolling press machine
