Lithium Ion Battery Continuous Roll To Roll Film Coating Machines
  • name
  • name
  • name
  • name
  • name
  • name

Lithium Ion Battery Continuous Roll To Roll Film Coating Machines

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Brand Name
GERUISI
Model Number
GRS-SY300-1J
Coating Width:
Max280 Mm
Accuracy:
±3um
Highlight:

Compact electrode coater

,

Lithium Ion Battery electrode coater

,

Lithium Battery film coater machine

Product Description
Lithium-ion Battery Continuous Roll to Roll Film Coating Machines
Product Description

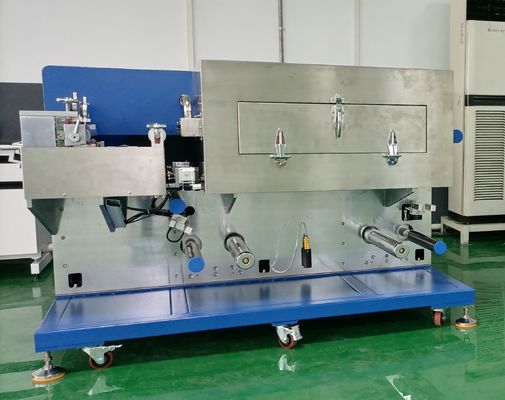

Lithium Ion Battery Continuous Roll To Roll Film Coating Machines 0
The continuous experimental coating machine is a three-roller transfer coating equipment that is convenient for surface coating various substrates, especially in the ion battery industry. The equipment is designed for ease of use by researchers, while meeting the requirements of coating accuracy and consistency, which are no different from production. It has excellent drying effects. It is a lithium ion battery, super capacitor Ideal for nickel batteries and other secondary battery development and small trials.
Features:
1.Base material tension control, stable belt routing, and stomach correction installation.
2.Three roller transfer coating with wide coating window. Optional solvent collecting device.
3.Hot air type oven, blowing both sides up and down, excellent drying effect.
4.Calculation of scraping force, combined with a precise adjustment mechanism, achieves high coating accuracy.
Specification
Coating method

Continuous coating, intermittent coating
Coating speed
0~0.5 m /min
Thickness
aluminum foil (Al) : 8 ~ 30um
Copper foil (Cu) : 8 ~ 30um
Design width of roll surface
 330 mm
Ensure coating width
280mm
Coating roller
Φ120mm
  Accuracy

±3um
Lithium Ion Battery Continuous Roll To Roll Film Coating Machines 1
Tags:

lithium battery coating machine,

electrode coater,

electrode film coating machine
