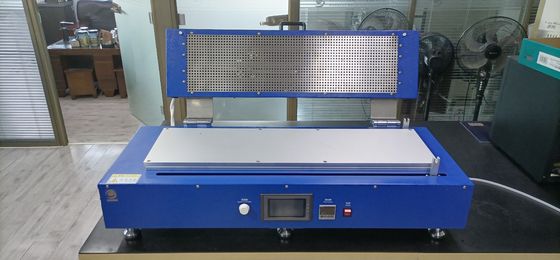

Heat Vacuum Battery Coating Machine Automatic Film Coater
  • name

Heat Vacuum Battery Coating Machine Automatic Film Coater

Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
GERUISI
Model Number
GRS-TMH800
Type:
Coating Machine
Coating Speed:
0~120mm/sec
Maximum Stroke:
800mm
Vacuum Plate Size:
L900mm × W200mm × H32mm
Heating And Drying System:
Room Temperature~130 ℃
Highlight:

220V Battery Coating Machine

,

Automatic Battery Coating Machine

,

Heat Vacuum automatic film coater

Product Description
Product Description
Equipped with a coating machine with a width of 100mm
Strong wind circulation drying and heating, digital display temperature control, maximum working temperature of 130 ℃;
Digital display timer, allowing for free setting of drying time;
The coating speed can be adjusted within the range of 0-120mm/s;
Vacuum aluminum disc, which can quickly place or remove the substrate;
The stroke can be adjusted between 0-800mm using a travel switch;
Scraper with adjustable coating thickness (precision 0.01mm);
Small external dimensions can save space;
Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;
Can provide infrared drying
Specification



Coating speed: 0-120mm/s;
The stroke can be adjusted between 0-800mm through the stroke switch.
Vacuum plate: with vacuum aluminum flat plate;
Vacuum board size: L900mm × W200mm × H32mm;
Adjustable range of scraper: 0-3.5mm;
Heating and drying system: Room temperature~130 ℃, digital temperature controller, accuracy ± 1 ℃
Power supply: 220V/50Hz;
Power: 1.8KW
Weight: 70KG;
Dimensions: L1000mm × W350mm × H320mm

Heat Vacuum Battery Coating Machine Automatic Film Coater
