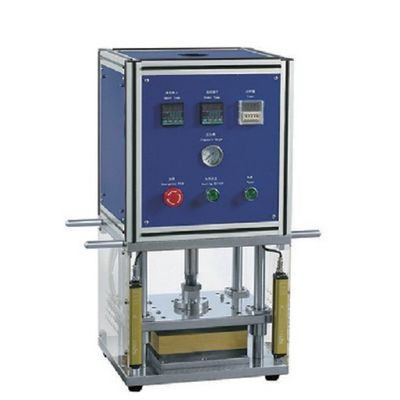

Hot Press Formation Lithium Pouch Cell Assembly Equipment Laboratory Machinery
  • name
  • name
  • name
  • name

Hot Press Formation Lithium Pouch Cell Assembly Equipment Laboratory Machinery

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
GERUISI
Model Number
GRS-RY200
Applicable Industries:
Pouch Cell Battery
Pouch Cell:
200*200mm
Speed:
300~500 Times/hr.
Pressure:
0~2T
Compressed Air:
0.5～0.7Mpa
Highlight:

Hot Press Pouch Cell Assembly Equipment

,

lithium Pouch Cell Assembly Equipment

,

Hot Press lithium cell machinery

Product Description
Product Description
It is suitable for thermal flattening and shaping of flexible packaged lithium batteries after winding, and it is easy to enter
the shell and flatten the appearance of the flexible package after shaping the bare battery core;
Features:
1.Automatic thermostatic control, automatic thermal pressure timing;
2.The machine is compact and flexible in use;
3.The pressure is continuously adjustable. The heating body is made of copper;
4.The whole machine operates safely and stably, with reliable control and convenient operation.
Specification
Effective compression area (L * W)
200*200mm
Working speed approx.
300~500 times/hr.
Pressure
0~2T
Voltage
AC220V 50HZ
Power
1000W
Compressed air
0.5～0.7Mpa
Size
L320*W320*H430
Weight
60Kg
Hot Press Formation Lithium Pouch Cell Assembly Equipment Laboratory Machinery 0
