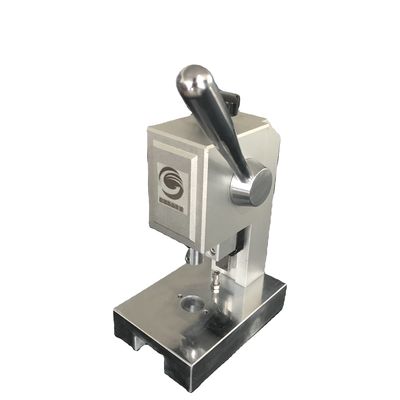

The punching machine is a patented product independently developed by our company, dedicated to punching and cutting processes. It is equipped with molds of different specifications to perform punching, blanking, and other processes on thin sheet materials. The complete machine is compact in design, flexible and convenient in use, and is very suitable for punching and blanking materials such as positive and negative electrode plates of batteries with a thickness of 0.005 to 0.5MM, and separator paper.
Features:
*Punching size: optional Ф 3mm~ Ф 24mm according to customer specifications; *Punching pressure: ≥ 300Kg; *Pressing shaft stroke: ≥ 25mm; *Punching accuracy: 0.01mm; *Punchable material: 0.005-0.5mm thick battery material sheet; *Overall dimensions (length * width * height) (mm): L110 * W150 * H235mm; *Available in diameter Φ The Glovebox with a diameter of more than 200mm can pass through the transition chamber freely; *The body is made of aluminum alloy, which is rust resistant and beautiful; *Equipped with one M5 sheet metal hand tool; *Material receiving box: anti-static, ABS material, residual material discharge.

Specification

Punching Size	Optional 3mm ~φ24mm as specified by the customer
Punchable thickness	0.005~0.5mm as specified by the customer
Press shaft stoke	Max.25mm
Size	L110×W150×H235mm
Weight	6Kg
Pouching die type	Electrode or Separator Cutting (optional model)

Tags:

Products

Detail Information

Product Description

Detail Information

Place of Origin

China

Applicable Industries:

Coin Cell Battery

Accuracy:

0.01mm

Punching Size:

Optional 3mm ~24mm As Specified By The Customer

Pouching Die Type:

Electrode Or Separator

Moulde Size:

3~24mm Customerised

Highlight

Electrode coin cell assembly machine

coin cell assembly machine Disc Cutter

Electrode coin cell disc cutter

Product Description

Specification

Punching Size	Optional 3mm ~φ24mm as specified by the customer
Punchable thickness	0.005~0.5mm as specified by the customer
Press shaft stoke	Max.25mm
Size	L110×W150×H235mm
Weight	6Kg
Pouching die type	Electrode or Separator Cutting (optional model)
