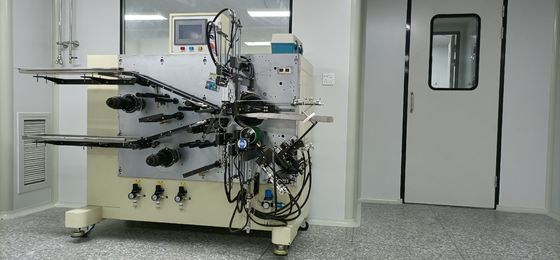

18650 21700 Battery Electrode Pouch Cell Assembly Winding Machine
  • name

18650 21700 Battery Electrode Pouch Cell Assembly Winding Machine

Details Information
Product Description
Detail Information
Place of Origin
China
Winding Size:
Diameter: 17-32mm, Length:25-70mm
Highlight:

21700 pouch cell assembly

,

18650 pouch cell assembly

,

21700 battery winding machine

Product Description
Product Description
Suitable for semi-automatic production of cylindrical lithium ion batteries. For manual winding machines, this equipment has high
winding efficiency, good winding regularity, and is suitable for a wide range of battery sizes. It is more suitable for various
cylindrical battery winding needs in lithium battery laboratories.
Features:
lAutomatic membrane placement, automatic winding, automatic adhesive tape placement and automatic blanking;
lThe electrode plate guide plate can easily adjust the width and adapt to a wide range of electrode plates;
lAutomatic alarm and display of fault location in case of abnormality, convenient for handling;
lMembrane constant tension feeding, good uniformity of core tension;
lAdopt man-machine interface to control the machine, which is simple and intuitive to operate;
lThe operation is easy and easy to learn, which can form productivity as soon as possible.
Specification
Winding method
Volcanic membrane, Chip electrode
Winding form
Pair insertion type roll needle,standard diameter3.5mm
Winding size
Diameter: 17-32mm, length:25-70mm
Winding accuracy
Uniformity better than 0.5 mm
Guide groove length
1200 mm, pole piece can be slightly longer
Film cutting method
Automatic cut-off
Winding speed
Max300r/min can be set on the touch screen
Diaphragm roll diameter
Max250mm
Power
1KW
Air source
0.5Mpa ～ 0.7Mpa


Tags:

pouch cell assembly equipment,

lithium ion pouch cell assembly,

pouch cell stacking machine
