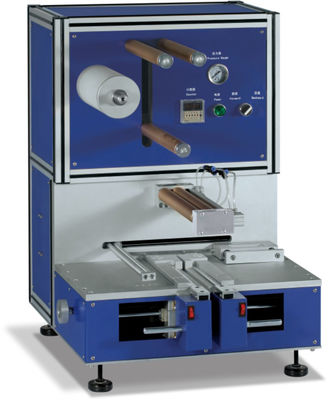

Laboratory Pouch Cell Battery Assembly Stacking Machine
  • name
  • name

Laboratory Pouch Cell Battery Assembly Stacking Machine

Details Information
Product Description
Detail Information
Brand Name
GERUISI
Model Number
GRS-BDP200B
Lamination Size:
Min. L44mm * W44mm
Laminate Thickness:
Max.12mm
Diaphragm Roll Diameter:
Max. 220mm
Lamination Viscosity:
The Uniformity Is Better Than ± 0.5mm
Highlight:

Laboratory pouch cell battery assembly

,

220V pouch cell battery assembly

,

220V battery stacking machine

Product Description
Product Introduction:
The stacking process for battery cells, which involves Z-shaped stacking of positive and negative electrodes with separators, is a device that can be applied to the stacking process of lithium-ion battery electrodes. The device adopts an automatic tension control system for isolation membranes, and the cylinder drives the diaphragm to move left and right to achieve Z-shaped stacking. The cantilever design is easy to operate. Compared to manual laminating machines, this equipment has the characteristics of high laminating efficiency, good laminating neatness, and a wide range of applicable battery sizes. It is an ideal choice for research and development sample production and small batch trial production equipment.

Main features:
*The calibration, operation, and maintenance of the machine are simple and easy;
*Suitable for a wide range of cell stack sizes;
*Semi automatic laminating and tension control system;
*Automatic counting and zeroing function;
*The function of automatically maintaining the last used parameter status after power outage and non use;
*The whole machine is suitable for a wide range of battery sizes;
*Using foot pedal switch to control cylinder action;
*The calibration, operation, and maintenance of the machine are simple and easy;
*High work efficiency, equipped with a digital timer;
*Tabletop type, can be placed on a regular desktop, with a delicate and beautiful appearance.

Specification
Lamination viscosity
The uniformity is better than ± 0.5mm
Lamination size
(including pole lug length)
Min. L44mm * W44mm (If it is small, it needs to replace the pressing plate) Max. L200mm * W150mm (the pole lug is on the long
side)
Laminate thickness
Max.12mm (if thicker, the adjusting plate needs to be replaced)
Diaphragm roll diameter
Max. 220mm
Installation dimensions
L512mm*W820mm*H580mm
Weight
About 50Kg
Voltage
Voltage single-phase 220VAC ± 10% (110VAC can be customized)
Frequency
50Hz/60Hz
Power
200W
Compressed air
0.4~0.6MPa
Usage environment
Recommended ambient temperature: 25 ± 3 ℃, humidity: 30~90RH, no vibration and electromagnetic interference



Pouch cell asssembly line


Laboratory Pouch Cell Battery Assembly Stacking Machine 0



Tags:

pouch cell assembly equipment,

lithium ion pouch cell assembly,

pouch cell stacking machine
