Coin Cell Electrode Cutter Press Punching For Seperator Or Electrode
  • name
  • name
  • name
  • name

Coin Cell Electrode Cutter Press Punching For Seperator Or Electrode

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Place of Origin
China
Accuracy:
0.01mm
Punching Size:
Optional 3mm ~24mm As Specified By The Customer
Pouching Die Type:
Electrode Or Separator
Moulde Size:
3~24mm Customerised
Highlight:

Coin Cell battery slitting machine

,

battery slitting machine Press

,

electrode cutter Press

Product Description

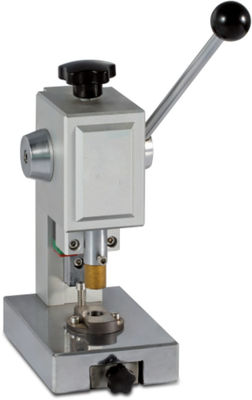

Coin Cell Electrode Cutter Press Punching for seperator or electrode
Product Description
The punching machine is a patented product independently developed by our company, dedicated to punching and cutting processes. It is equipped with molds of different specifications to perform punching, blanking, and other processes on thin sheet materials. The complete machine is compact in design, flexible and convenient in use, and is very suitable for punching and blanking materials such as positive and negative electrode plates of batteries with a thickness of 0.005 to 0.5MM, and separator paper.
Features:
*Punching size: optional Ф 3mm~ Ф 24mm according to customer specifications; *Punching pressure: ≥ 300Kg; *Pressing shaft stroke: ≥ 25mm; *Punching accuracy: 0.01mm; *Punchable material: 0.005-0.5mm thick battery material sheet; *Overall dimensions (length * width * height) (mm): L110 * W150 * H235mm; *Available in diameter Φ The Glovebox with a diameter of more than 200mm can pass through the transition chamber freely; *The body is made of aluminum alloy, which is rust resistant and beautiful; *Equipped with one M5 sheet metal hand tool; *Material receiving box: anti-static, ABS material, residual material discharge.

Specification

Punching Size
Optional 3mm ~φ24mm as specified by the customer
Punchable thickness
0.005~0.5mm as specified by the customer
Press shaft stoke
Max.25mm
Size
L110×W150×H235mm
Weight
6Kg
Pouching die type
Electrode or Separator Cutting (optional model)
Coin Cell Electrode Cutter Press Punching For Seperator Or Electrode 0
