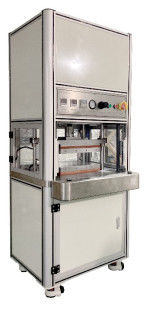

Hot Press Plastic Vacuum Forming Machine 10T Pressure for Pouch Cell

Hot Press Plastic Vacuum Forming Machine 10T Pressure for Pouch Cell

Payment Method: T/T, Western Union
Detail Information
Place of Origin
China
Brand Name
GERUISI
Model Number
GRS-DRY300
Press:
10T
Equipped With:
Micro Short Circuit Testing Function
Highlight:

Hot Press vacuum forming machine

,

Pouch Cell vacuum forming machine

,

10T Pressure plastic forming machine

Product Description
Product Description
This device is mainly suitable for thermal flattening and shaping after winding the battery cell, making it easy to enter the shell. The wound cell is placed on the template and shaped by applying pressure and heating to achieve a consistent thickness of the cell, reducing the elasticity of the cell, reducing the short circuit rate of the core, and ensuring consistency in the thickness of the finished cell.


The size specification of the pressure plate is 250 * 200mm (the pressure plate is suitable for wearing battery hot pressing)

Pressure plate material: steel plate

Working pressure of 10 tons

Equipped with micro short circuit testing function


Specification

Technical Parameter

1. 10 ton turbocharged cylinder

2. Upper and lower copper plate heating plates

3. The thickness of the upper and lower working plates is 30MM

4. Panasonic temperature controller

5. Omron time relay adjustable from 0 to 999.9 seconds

6. Yangming solid-state relay

7. Safety light curtain and dual button start protection together

8. Power supply configuration: AC220V/50HZ Power: 5.5KW

9. Equipment weight: approximately 1.2 tons

10. Maximum pressure for flat pressing according to customer needs

11. Parallelism of upper and lower hot plates ≤ 0.03mm

12. Heating temperature and pressure adjustable

13. Adjustable pressing clearance

14. Temperature control range: indoor temperature~400 ° C Temperature error: ± 2 ° C

15. Equipment dimensions: length, width, height 650x620x1750 mm
