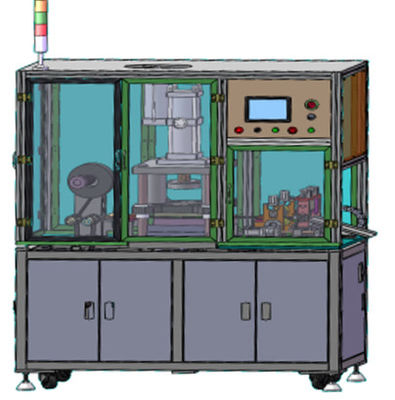

Pouch Cell Lithium Battery Manufacturing Equipment Plastic Film Forming machine
  • name

Pouch Cell Lithium Battery Manufacturing Equipment Plastic Film Forming machine

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Brand Name
GERUISI
Model Number
GRS-CK-200
Speed:
2000-2800pcs/H
Highlight:

Pouch Cell lithium battery manufacturing equipment

,

Film Forming lithium battery manufacturing equipment

,

Film Forming lithium battery manufacturing machine

Product Description
Product Description
Suitable for the punching and forming of aluminum-plastic film for pouch cell lithium batteries

Main features: Action process: One out two action process ;Equipment size: 1550 (length) * 660 (width) * 1900 (height)

Specification

1. Servo feeding: clockwise rotation
2. Applicable specifications: Aluminum plastic film width 50-170, aluminum plastic film length 20-280 (one out one to one out two)
3. Blade length: 200mm, effective film cutting width 180mm
4. Top sealing edge width: above 1.8mm, top sealing edge accuracy+/-0.1
5. Equipment production capacity: One out one (1300-2000pcs/H), one out two (2000-2800pcs/H), one out three (3500-4000). The change in production capacity is related to the customer's aluminum-plastic film brand, punching depth, and punch size.
6. Shell punching mold: For products with a length between 10-15mm, a one to three mold can be made. For products with a length between 16-50mm, a one to two mold can be made. For products with a length above 50, only a one to one mold can be made. These are only theoretical values, and the final method depends on the aluminum-plastic film used by the customer.
7. Product qualification rate ≥ 99.9%
Applicable range of whole shell size
Battery length L2 10-130mm
Battery width W2 10-100mm
Battery thickness 1-10 mm
Airbag length W3 30~50 mm
Side width W1 8-15mm
