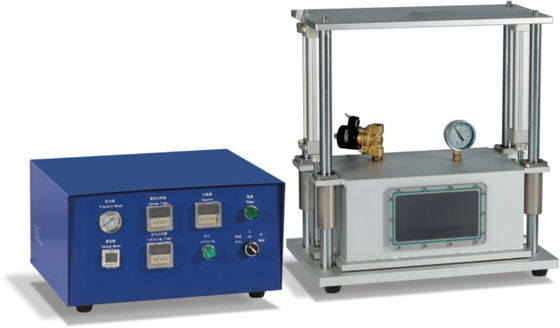

Name: Electrolyte battery Hydraulic Sealing Machine for Diffusion Degassing
Brand: WUHAN GRACE NEW ENERGY CO., LTD.
SKU: GRS-JZ300
Availability: InStock

Payment Method:	T/T, Western Union

Details Information

Product Description

Detail Information

Brand Name

GERUISI

Model Number

GRS-JZ300

Size:

L320mm*W320mm*H175mm；

Highlight:

OEM Electrolyte Hydraulic Sealing Machine

Electrolyte battery Hydraulic Sealing Machine

Electrolyte battery sealing machine

Product Description

This device is mainly applicable to the device that absorbs the electrolyte to make it more fully integrated with the electrode sheet in a vacuum environment when the pouch cell battery and cylindrical cell battery are injected.

Main features:

* Vacuum is stable. When holding, the lower vacuum degree is not large.

* The product has multi-stage cycle operation function. Helps the electrolyte blend more fully.

* Through the perspective window, changes in the cavity can be observed while working.

* The upper chamber is driven by the cylinder, guided by two linear guide sleeves, flexible up and down movement, accurate guidance to ensure product sealing requirements.

* Can be applied to different specifications of product batteries, and the adjustment is simple and convenient.

* The main machine and control box split design, so that the machine can be placed in the glove box work, can also be placed on the assembly line work.

* Easy to operate, beautiful appearance, small size, light weight.

Technical parameter

* The cavity is made of aluminum alloy, corrosion resistance, solid structure;

* The standing time can be set 0-9999S adjustable, the pressure is adjustable;

* Vacuum degree can reach -95KPa or more (buyer's own vacuum pump);

* Good sealing, can ensure 1 minute leakage does not exceed -1KPa;

* Power supply: 220V/50Hz;

* Power: 100W;

* Compressed air source: 0.5 ~ 0.8Mpa; When used in the glove box, the cylinder power source must use the working gas used in the glove box 0.5 ~ 0.8Mpa;

* Cavity volume: L320mm*W320mm*H175mm;

Overall dimensions of equipment

* Execution chamber action part: about L500mm*W350mm*H630mm

* Control part: about L460mm*W350mm*H340mm

* Weight: about 50KG
