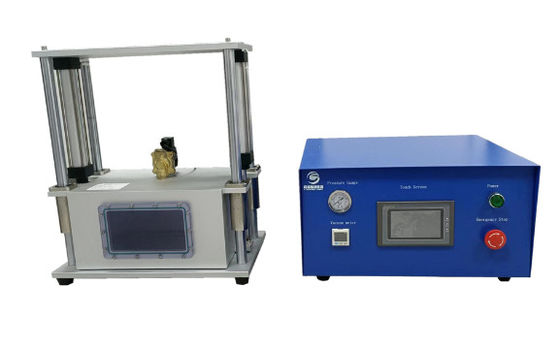

Name: Electrolyte Vacuum Hydraulic Sealing Machine For Cylindrical Battery
Brand: WUHAN GRACE NEW ENERGY CO., LTD.
SKU: GRS-JZ200-S
Availability: InStock

Payment Method:	T/T, Western Union

Details Information

Product Description

Detail Information

Brand Name

GERUISI

Model Number

GRS-JZ200-S

Size:

L200mm*W220mm*H420mm

Highlight:

Electrolyte Vacuum Sealing Machine

Cylindrical Battery Electrolyte Vacuum

220V Hydraulic Sealing Machine

Product Description

This device is mainly applicable to the device that absorbs the electrolyte to make it more fully integrated with the electrode sheet in a vacuum environment when the pouch cell battery and cylindrical cell battery are injected.

Main features:

* Vacuum is stable. When holding, the lower vacuum degree is not large.

* The product has multi-stage cycle operation function. Helps the electrolyte blend more fully.

* Through the perspective window, changes in the cavity can be observed while working.

* Can be applied to different specifications of product batteries, and the adjustment is simple and convenient.

* The main machine and control box split design, so that the machine can be placed in the glove box work, can also be placed on the assembly line work.

* Easy to operate, beautiful appearance, small size, light weight.

Technical parameter

* Touch screen PLC operation, high and low vacuum, each cycle number and standing time can be set, easy to operate.

* The cavity is made of aluminum alloy, corrosion resistance, solid structure;

* Vacuum degree can reach -95KPa or more (buyer's own vacuum pump);

* Good sealing, can ensure 1 minute leakage does not exceed -1KPa;

* Power supply: 220V/50Hz;

* Power: 100W;

* Cavity volume: L200mm*W220mm*H420mm;

Overall dimensions of equipment

* Cavity part: L275mm*W380mm*H460mm

* Control part: about L460mm*W350mm*H340mm

* Weight: about 50KG
