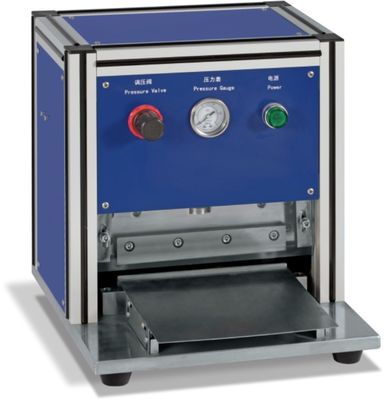

Name: Pneumatic Edge Cutting Lithium Ion Battery Making Machine For Laboratory
Brand: WUHAN GRACE NEW ENERGY CO., LTD.
SKU: GRS-QP200
Availability: InStock

Payment Method:	T/T, Western Union

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

GERUISI

Model Number

GRS-QP200

Cutting Edge Width:

2 ~ 10mm Margin Can Be Adjusted

Cutter Length:

200mm;

Highlight:

Pneumatic lithium ion battery making machine

Laboratory lithium ion battery making machine

Laboratory lithium battery making machine

Product Description

Product Description

It is mainly used for cutting edge molding of aluminum plastic film of pouch cell lithium battery, and can also be used for cutting other soft materials.

* The upper silver linear slide group is used to guide, and the guiding accuracy is extremely high to ensure zero clearance between the upper and lower cutting tools and long service life;

* The upper and lower cutting knives are made of high-speed steel with sharp blades;

* Built-in pressure gauge, can observe and accurately control the size of cutting pressure;

* The cylinder control cutter cuts the edge of the battery seal, easy to form automation, and the width of the cutting edge can be adjusted;

* Cutting air pressure, speed can be set and adjusted;

* Set product positioning tray to facilitate battery positioning;

* Foot running switch, reliable, convenient and fast;

* The frame is assembled with profiles and lacquered sealing plates. The structure of the equipment is simple, small, and the appearance is exquisite and beautiful.

Specification

* Cutter length: 200mm;

* Cutting edge width: 2 ~ 10mm margin can be adjusted;

* Cutter die life: 10 million times/grinding;

* Speed: air pressure 600 times/hour;

* Power supply: AC220V/50Hz;

* Air pressure source: 0.5Mpa ~ 0.7Mpa;

* Power: 100W;

* Dimensions: L320 * W180 * H340mm;

* Weight: 35Kg
