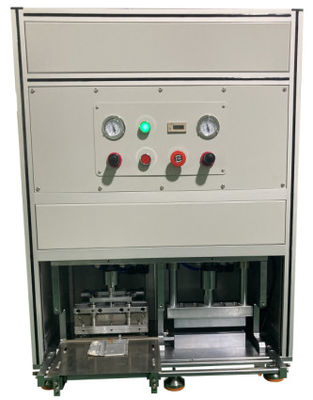

Name: Lithium Ion Battery Manufacturing Equipment Tab Cutting Assembly
Brand: WUHAN GRACE NEW ENERGY CO., LTD.
SKU: GRS-JEQY20
Availability: InStock

Payment Method:	T/T, Western Union

Details Information

Product Description

Detail Information

Brand Name

GERUISI

Model Number

GRS-JEQY20

Cutting Blade Length::

200 Mm

Applicable Battery Width:

Less Than 225mm

Highlight:

Battery Cell lithium ion battery manufacturing equipment

220V lithium ion battery manufacturing equipment

220V lithium ion battery assembly machine

Product Description

I. Function and working process

1. Function: This machine is specifically designed for cutting and shaping flattening the solder tabs of stacked battery cells.

2. Working process:

After placing the battery cells behind the welded tabs in place, press the foot switch, and the cylinder will drive the upper pressing block and knife to move downwards to cut off the excess laminated tabs and tabs. Then move the workstation to flatten the remaining tabs.

II. Basic Parameters

1. Compressed air: ≥ 0.6MPa

2. Cutting pressure: ≤ 1000Kgf

3. Cutting stroke: 15 mm

4. Cutting blade length: 200 mm

5. Flattening pressure: ≤ 1000Kgf

6. Working speed: 300-500 times/hour, depending on the process parameters

7. Equipment weight: approximately 140 Kg

8. Spray color: Customize colors according to the demand, and the demand side provides a color palette

9. Voltage single-phase: AC220V ± 10%, frequency 50Hz/60Hz, power 100W, national standard plug

10. Air source: 0.5-0.8MPa compressed air

11. Applicable battery width: less than 225mm

Process performance

1. Manual loading and unloading;

2. The transition between cutting and flattening is manual;

3. Manual or foot operated control actions;

4. Equipped with automatic counting function;

5. There are safety protection door panels around.
