150mm Electric Oil Heated Roller Press Horizontal Machine For Battery Electrode

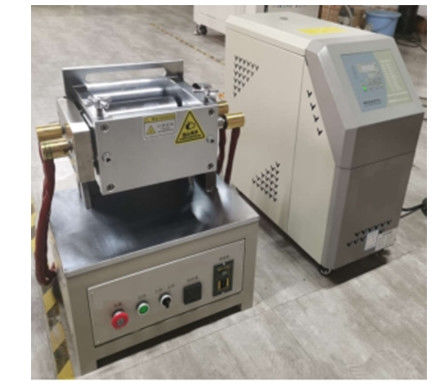

150mm Electric Oil Heated Roller Press Horizontal Machine For Battery Electrode

Payment Method: Western Union, T/T
Detail Information
Place of Origin
China
Brand Name
GERUISI
Model Number
GRS-DGWR150
Heating:
Maximum Temperature 200℃, Continuous Heating Temperature: 160℃
Rolling Thickness:
0~ 2mm Gap Adjustable
Electrode Width:
0 ~ 150mm(Customised)
Highlight:

150mm heated roller press

,

Battery Electrode heated roller press

,

150mm electric roller press

Product Description



Technical parameter

Power supply/Total power AC220V/50HZ 200W

The diameter of the roller is 96mm

Sheet thickness 0-2mm (customizable)

Roll width 0-150mm (customizable)

Roll speed 0-50mm/s (adjustable)

Heating temperature Maximum temperature 200℃, continuous heating temperature: 160℃

Heating mode The maximum power of the oil temperature machine is 4KW

Roller surface hardness HRC60 or above

Roller surface roughness below 0.8

Overall dimensions 300(L)x280(W)x335(H)mm

Weight 57KG
