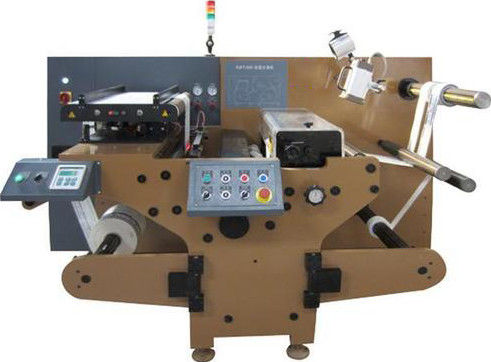

Name: Electric Roll To Roll Lithium Ion Electrode Battery Slitter Making Machine
Brand: WUHAN GRACE NEW ENERGY CO., LTD.
SKU: GRS-LFT300
Availability: InStock

Payment Method:	T/T, Western Union

Details Information

Product Description

Detail Information

Brand Name

GERUISI

Model Number

GRS-LFT300

Maximum Slitting Electrode Width:

Adjustment Range 20~230mm, Can Be Customized To 20~280mm

Highlight:

Electric battery slitter

lithium ion battery slitter

Electric lithium ion battery making machine

Product Description

Main features:

* Ultra-fine tungsten steel blade, good cutting quality, long service life;

* High precision of cutting width, no burrs, no waves, no indentation;

* The amount of cutting tool is adjustable, and the ratio of cutting speed to material linear speed is adjustable;

* By adjusting the inlet and outlet Angle, it can adapt to the material cutting of different materials and thickness values;

* Single vertical plate structure, independent cutter holder, equipped with dust removal device;

* Upper and lower round knife structure, cutting width can be changed to adjust the sleeve;

* Winding tension automatic control, upper and lower axis within 50N independent adjustable;

*PLC control, HMI operation, easy to use.

Technical parameters:

* Stripe method: single piece roll cutting

* Cutter type: upper and lower round knife to cut

* Width adjustment: Change the sleeve adjustment

* Cutting thickness: 100~300μm

* Slitting blade: superfine grain alloy tungsten steel, diameter Φ100mm

* Strip width: adjustment range 20~230mm, can be customized to 20~280mm

* Burr condition: ≤25μm

* Cutting capacity: 0.2~0.4mm adjustable, dial indicator display

* Stripe speed: Max. 4m/min

* Power supply: single-phase voltage 220VAC±10%, frequency 50Hz/60Hz, power 1kW

* Operating environment: Recommended ambient temperature 25±3℃, humidity 30~90RH, no vibration and electromagnetic interference

* Installation dimensions L900mm*W980mm*H450mm

* Weight about 100Kg
