Pouch Cell Assembly Equipment Electrode semi-automatic electrode die-cutting machine

Pouch Cell Assembly Equipment Electrode semi-automatic electrode die-cutting machine

Payment Method: T/T, Western Union
Detail Information
Place of Origin
China
Brand Name
GERUISI
Model Number
GRS-MQ300
Applicable Industries:
Pouch Cell Battery
Die Cut Size:
280x180mm
Cut Accuracy:
±0.1mm
Compressed Air:
0.5Mpa~0.8Mpa
Booster Cylinder Pressure:
3T
Highlight:

100W Pouch Cell Assembly Equipment

,

220V Pouch Cell Assembly Equipment

,

100W electrode punching machine

Product Description
Product Description
Product Introduction

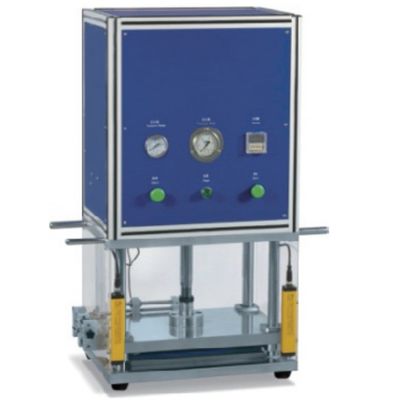

The semi-automatic electrode die-cutting machine is a highly efficient and mass produced flexible packaging positive and negative
electrode sheet forming equipment. It is also a convenient and fast multi-functional laboratory flexible packaging lithium
battery, positive and negative electrode sheet forming experimental and production equipment.
Features:
lRoll or sheet electrode feeding, knife template for die cutting;
lIt is convenient and quick to replace the knife mold (the life of the knife mold is about 30000 times for consumables);
lPneumatic pressurized cylinder drive, adjustable punching force and flatness;
lDie-cutting products have small burrs, no peeling, no indentation, and other poor appearance;
lEasy to operate, safe and reliable, beautiful appearance, small size
Specification
 Voltage
 220V/50Hz
 Power
 100W
 Compressed air
 0.5Mpa~0.8Mpa
Maximum punching size
 280x180mm(The maximum punching size can also be unlimited according to customer requirements)
 Cutting accuracy
 ±0.1mm
Booster cylinder
 3T
Size
  L550xW455xH900mm
Weight
 180kg
Pouch Cell Assembly Equipment Electrode semi-automatic electrode die-cutting machine 0
