Electrode coater Pouch Cell Assembly Equipment Lithium Ion Battery Coating Machine
  • name
  • name
  • name

Electrode coater Pouch Cell Assembly Equipment Lithium Ion Battery Coating Machine

Details Information
Product Description
Detail Information
Place of Origin
China
Type:
Coating Machine
Driven Type:
Electric
Coating Speed:
0~100mm/sec
Maximum Stroke:
300mm
Adjustable Range Of Scraper:
0.01 ~ 3.5mm
Highlight:

ODM Pouch Cell Assembly Equipment

,

lithium ion Pouch Cell Assembly Equipment

,

ODM lithium ion battery coating machine

Product Description
Product Description

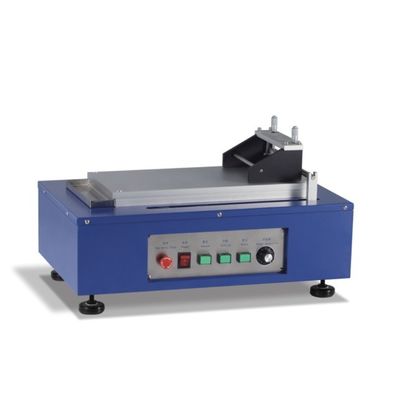

Automatic coating machines are widely used in various coating research, such as ceramic thin films, crystal thin films, battery material thin films, and special nano thin films. Optional accessories Micron adjustable film applicator 50~150MM wide, width can be specified upon request.
Features:
1.The coating speed is adjustable within the range of 0 to 100 MM/sec;
2.Equipped with RTD temperature probe and RS232C standard output interface.
3.The stroke can be adjusted through an inductive proximity switch between 10 and 250MM;
4.A scraper with micrometer adjustable film applicator (accuracy: 0.01MM) and width: 100MM;
5.Small overall size, saving space; Exquisite appearance, three-dimensional geometric design for sheet metal, simple and beautiful
Specification
Coating speed
0～100mm/sec
Maximum stroke
300mm
Vacuum plate
Aluminum plate with vacuum
Vacuum plate size
L415mm×W200mm×H30mm
Adjustable range of scraper
0.01 ～ 3.5mm
Power Supply
220V/50Hz
weight
50KG
Overall dimensions
L500mm×W310mm×H200mm

Electrode coater Pouch Cell Assembly Equipment Lithium Ion Battery Coating Machine 0
