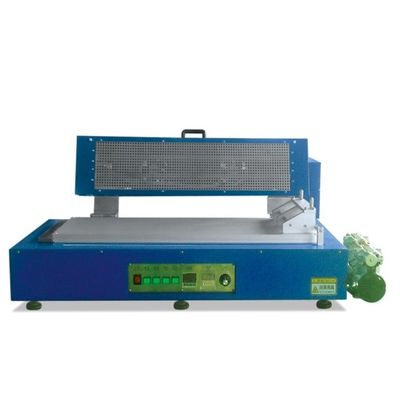

Electric Vacuum Electrode Film Coating Machine Coater For 18650 Batteries
  • name
  • name
  • name

Electric Vacuum Electrode Film Coating Machine Coater For 18650 Batteries

Details Information
Product Description
Detail Information
Place of Origin
China
Type:
Coating Machine
Applicable Industries:
Battery
Driven Type:
Electric
Coating Speed:
0~100mm/sec
Maximum Stroke:
800mm
Heating And Drying System:
Room Temperature~150 ℃
Highlight:

Electric electrode film coating machine

,

18650 batteries electrode film coating machine

,

18650 batteries film coating coater

Product Description
Product Description
Automatic coating and drying machines are widely used in various high-temperature coating research, such as ceramic thin films, crystal thin films, 18650 battery material thin films, and special nano thin films; It can adapt to the development of science and technology for film formation under high temperature conditions in the future.

Features:
1.The coating speed is adjustable within the range of 0 to 100 MM/sec;
2.Digital display temperature controlled drying system with a maximum operating temperature of 150 ℃;.
3.Adjustable through travel switch between 10 and 800MM
4.With adjustable film applicator Vacuum aluminum plate, which can quickly place or remove the substrate;
Specification
Coating speed
0～100mm/sec
Maximum stroke
800mm
Vacuum plate
Aluminum plate with vacuum
Vacuum plate size
865mm(L)×200mm(M)×30mm(H)
Adjustable range of scraper
0.01 ～ 3.5mm
Heating and drying system
Room temperature~150 ℃, digital display
temperature controller, accuracy ± 1 ℃
Power Supply
220V/50Hz
weight
100KG
Overall dimensions
900mm(L)×310mm(W)×330mm(H)
Electric Vacuum Electrode Film Coating Machine Coater For 18650 Batteries 0
Tags:

battery sealing machine,

lithium ion battery machine,

battery cell making machine
