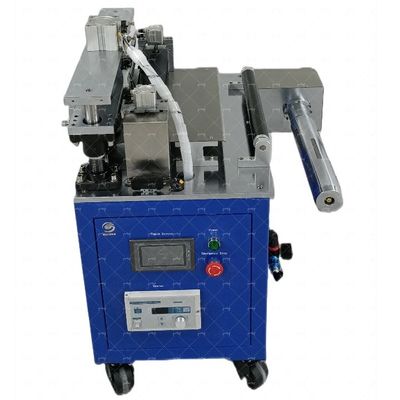

It is mainly used for single chip cutting of positive and negative electrodes of lithium batteries. The cutting length, quantity,
and speed can be arbitrarily set, and can be cut separately. This machine has an automatic unwinding function. The tension frame controls automatic unwinding and automatic stop. The speed during discharging is adjustable. The loading shaft is a pneumatic shaft, which is convenient for loading and unloading.
Features:
1.The cutting length, quantity, and speed can be arbitrarily set, and individual cutting can be performed;
lContinuous cutting, fixed length and cursor tracking are two options, which are suitable for multi segment cutting. Front and back compensation at the incision can be set;
2. This machine adopts PLC man-machine interface control, easy to use and operate
3.Automatic tension adjustment for unwinding is easy to operate, safe, reliable, and small in size;
4.The width is 10-300MM, and the length is arbitrarily set within 1-9999 MM.
5. Exquisite appearance, three-dimensional geometric design for sheet metal, simple and beautiful;

Specification

Unwind	The unwinding air expansion shaft is fixed, and the unwinding tension is automatic unwinding with constant tension. control
Tension	Min:1ON
Fixed length cutting speed	5-250mm/s
Chasing color cutting speed	5-150mm/s
Unwind diameter	(Max)250mm, Hairy condition≤25um
Voltage	220V/50Hz
Power	1.2KW
Compressed air	0.5Mpa ～ 0.8 Mpa
Application range	Bandwidth:300mm; Length:1×9999 mm
Device size	L1400W800H700mm
Weight	About240kg

Battery Pouch Cell Assembly Equipment Electrode Slitting Machine 0

Tags:

Products

Detail Information

Product Description

Detail Information

Place of Origin

China

Applicable Industries:

Battery Electrode

Fixed Length Cutting Speed:

5-250mm/s

Unwind Diameter:

(Max)250mm, Hairy Condition≤25um

Application Range:

Bandwidth:300mm; Length:1×9999 Mm

Compressed Air:

0.5Mpa ～ 0.8 Mpa

Highlight

Electrode Slitting Pouch Cell Assembly Equipment

1.2KW Pouch Cell Assembly Equipment

Pouch Cell electrode slitting machine

Product Description

Specification

Unwind	The unwinding air expansion shaft is fixed, and the unwinding tension is automatic unwinding with constant tension. control
Tension	Min:1ON
Fixed length cutting speed	5-250mm/s
Chasing color cutting speed	5-150mm/s
Unwind diameter	(Max)250mm, Hairy condition≤25um
Voltage	220V/50Hz
Power	1.2KW
Compressed air	0.5Mpa ～ 0.8 Mpa
Application range	Bandwidth:300mm; Length:1×9999 mm
Device size	L1400W800H700mm
Weight	About240kg

Battery Pouch Cell Assembly Equipment Electrode Slitting Machine 0
