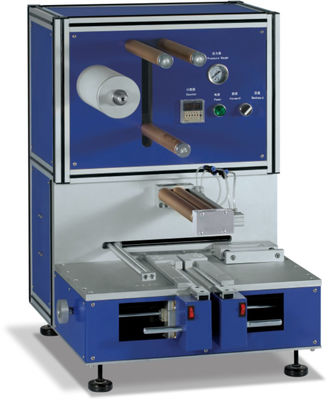

Semi Automatic Battery Electrode Stacking Machine Lamination Z Shape
  • name
  • name

Semi Automatic Battery Electrode Stacking Machine Lamination Z Shape

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
GERUISI
Lamination/Stacking Size:
Min. L44mm * W44mm
Diaphragm Roll Diameter:
Max. 220mm
Used For:
Pouch Cell Battery
Lamination/ Stacking Viscosity:
The Uniformity Is Better Than ± 0.5mm
Highlight:

Semi Automatic electrode stacking machine

,

Lamination electrode stacking machine

,

Lamination battery stacking machine

Product Description
Specification
Stacking viscosity
The uniformity is better than ± 0.5mm
Lamination/Stacking size
(including Electrode Tab length)
Min. L44mm * W44mm (If it is small, it needs to replace the pressing plate) Max. L200mm * W150mm (the Electrode Tab is on the long
side)
Laminate/Stacking thickness
Max.12mm (if thicker, the adjusting plate needs to be replaced)
Diaphragm roll diameter
Max. 220mm
Installation dimensions
L512mm*W820mm*H580mm
Weight
About 50Kg
Voltage
Voltage single-phase 220VAC ± 10% (110VAC can be customized)
Frequency
50Hz/60Hz
Power
200W
Compressed air
0.4~0.6MPa
Usage environment
Recommended ambient temperature: 25 ± 3 ℃, humidity: 30~90RH, no vibration and electromagnetic interference

Semi Automatic Battery Electrode Stacking Machine Lamination Z Shape 0
