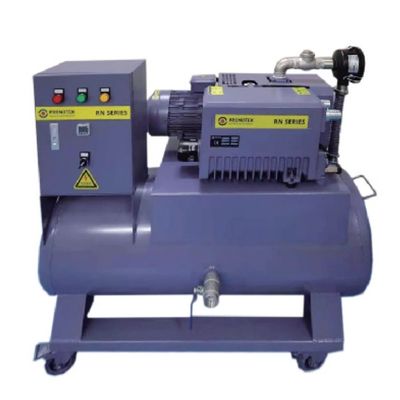

Lithium Battery Production Line Machine 100L Vacuum Pump System

Lithium Battery Production Line Machine 100L Vacuum Pump System

Detail Information
Place of Origin
China
Air Storage Tank:
100L
Pumping Speed:
100 M³/h
Oil Injection Volume:
2L
Highlight:

lithium battery production line Vacuum Pump

,

lithium battery production line 100L Pump

,

battery production machine Vacuum Pump

Product Description
Specification
Item
Unit
Frequency
SP100
Pumping speed
m³/h
50Hz
100
Extreme vacuum
mbar
50Hz
0.1
caliber

50Hz
G134/G114
Voltage
V
50Hz
220-240.345-415
Voltage
KW
50Hz
3
speed
r/min

1405,1720
noise
ENISO2151
dB(A)
65
Oil injection volume
L

2
weight
KG

75
Item
Specification
QTY
Main Pump
PRONOTEK PNK SPO100
Motor power: 3.0KW/unit; Rated pumping speed: 100 m ³/ h
Extreme vacuum: 0.1mbar; Motor noise: 65db
1pc
Air filter
Standard matching
1set
Air storage tank
Standard horizontal metal pressure chain with a capacity of 100L
1pc
Interface
One standard ball valve interface, one standard adapter interface, interface size 2 inches (inner diameter)
1set
Vacuum display meter
Standard stomach external shock resistant vacuum gauge, installation of electric control box
1pc
Connecting pipes and joints
Standard configuration specialized 304 corrugated pipe, ball valve, check valve
1set
Platform underframe
5cm angle steel welded base frame, integrated with air storage tank and vacuum pump
1set

Power Distribution Box
1 set of single pump control distribution box, divided into automatic/manual modes
The upper and lower limits of vacuum pressure can be set, and automatic operation mode can be activated.
1 Digital vacuum meter, control knob, several power indicators, and 1 emergency stop button

1set
