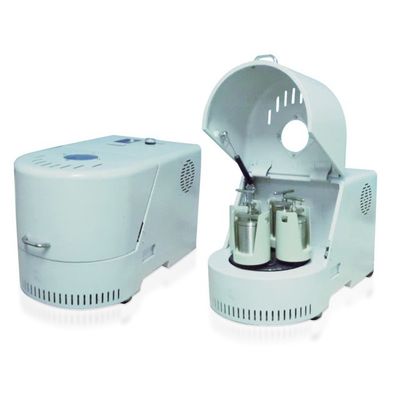

Name: SUS304 Planetary Ball Milling Machine For Laboratory
Brand: WUHAN GRACE NEW ENERGY CO., LTD.
SKU: GRS-XQM1
Availability: InStock

Details Information

Product Description

Detail Information

Brand Name

GERUISI

Model Number

GRS-XQM1

Output (kg/h):

10 - 20 Kg/h

Feeding Size (mm):

0 - 10 Mm

Output Size (mesh):

0 - 100 Mesh

Power (kW):

0.5

Range Of Spindle Speed(r.p.m):

50 - 400 R.p.m

Material:

SUS304

Type:

Ball Mill

Machinery Test Report:

Provided

Air Press:

2MPa

Highlight:

SUS304 planetary ball milling machine

2MPa planetary ball milling machine

SUS304 planetary ball mill for laboratory

Product Description

Planetary ball mill is mixing, fine grinding, small sample preparation, nanomaterial dispersion, new product development and small batch production ,An essential device for the production of high-tech materials.

Features:
1. The ball milling tank adopts planetary movement, and the ball milling efficiency is high and the particle size is fine;
2. Frequency conversion control, the ideal speed can be selected according to the test results;
3.The whole integration has the functions of timing shutdown, automatic timing positive and reverse rotation, and can freely choose unidirectional, alternating, continuous, timing and irregular operation modes according to needs to improve grinding efficiency;
4.The inverter has undervoltage and overcurrent protection, which can provide some necessary protection for the motor;

Specification

Grinder specifications	250mL*4
Grinding tank material	Stainless steel, nylon, corundum ceramics, zirconia, etc
Grinding material	Stainless steel, agate, nylon, corundum ceramics, zirconia, etc
Maximum charge per can	Materials and grinding media shall not exceed two-thirds of the volume
Feed particle size	Crispy materials less than 10mm, others less than 3mm
Discharging particle size	Up to 0.1 micron minimum
rotate speed	Revolution maximum 0-400r/min, Autorotation: 0-800 r/min
Speed ratio	(Revolution: Autorotation) 1:2
Speed adjust method	Brand inverter stepless speed regulation, rotational speed accuracy 0.2 rpm
Work method	Two or four tanks operating simultaneously
Maximum continuous working time	72hrs(timing0-9999h)
Work voltage	220V
Power consumption	0.75Kw
Dimension	450×700×550mm
