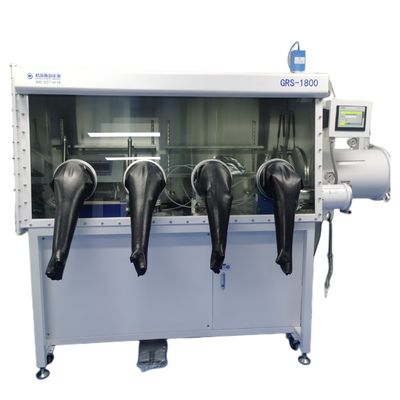

1PPM Lithium Battery Glove Box With Gas Purification System
  • name
  • name
  • name
  • name
  • name
  • name

1PPM Lithium Battery Glove Box With Gas Purification System

Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
GERUISI
Model Number
GRS1200/1800
Material:
Steel
Size:
2400*770*900mm
Leakage Rate:
<0.05vol%/h
Water Oxygen Content:
<1PPM
Control Systerm:
Siemens PLC
Highlight:

Siemens PLC Lithium Battery Glove Box

,

1PPM Lithium Battery Glove Box

,

1PPM glove box for lithium battery

Product Description
Product Description
Laboratory glove box for Lithium Battery is a kind of equipment to provide water free and oxygen free environment. The equipment is mainly composed of display system, transition chamber, vacuum system, control system, box, circulating purification regeneration system, etc., and can also be integrated with gas purification system, solvent filtration system, water oxygen display system, etc. The box is made of high-quality steel plate or mirror stainless steel by argon arc welding, with double layers of tempered glass. Beautiful and novel, with stable performance.
Features:
1.Automatic function control of air pressure, detection, purification, and reduction;
2.Touch screen: Colorful Chinese and English operation interface, easy to access various functions, achieving human-machine dialogue;
3.Circulation: closed loop gas circulation without oil and vacuum;
4.Air pressure control: automatic control, working air pressure can be set within the range of+/-12MBAR;Box cleaning: Automatic control, easy to operate, gas saving, and solvent safe for operation;
5.Foot switch: The air pressure inside the box can be adjusted through the foot switch;
6.Configure internationally renowned brand components;
7.Excellent sealing performance and convenient replacement;
8Data memorandum: automatic recording of system data;
Specification


Enclosed box
Size: 2400 × 770× 900mm                  ( Customerised size avaiable)
Material: 3mm thick SUS304
Gloves: American NBR 8B1532
Lighting: LED light source
Sensor: German Hasvasch micro pressure sensor
Cleaning: Automatic cleaning of the box, quick replacement
Water oxygen content
<1PPM

Laboratory glove box for Lithium Battery Leakage rate
<0.05vol%/h

Large transition cabin
φ390*600mm automatic compensation function

Small crossing cabin
φ150*300mm Material:3mm thickness SUS304

Circulating purification and regeneration system
1 or 2purification column

Control system
Siemens PLC, Germany

display system
Kunlun Tongtai 7 "color touch screen, dynamic display

vacuum system
Edward RV12

Water analyzer
Michell, imported from the UK with original packaging, adopts advanced ceramic humidity transmitter, with temperature
compensation and PLC display

Ammonia analyzer
Original imported, independent display, PLC display

Organic solvent adsorption system
Water washed vacuum baked high-quality activated carbon, 10KG

Tags:

glove box vacuum chamber,

environmental battery test chamber,

battery testing chamber
