Name: Automatic Cylindrical Cell Battery Sealing Machine For 18650 21700 26650
Brand: WUHAN GRACE NEW ENERGY CO., LTD.
SKU: GRS-ZDFK700
Availability: InStock

Payment Method:	T/T, Western Union

Details Information

Product Description

Detail Information

Brand Name

GERUISI

Model Number

GRS-ZDFK700

Sealing Pressure:

Max.3000Kg

Capacity:

6PCS/min

Power Supply:

220V/50Hz

Power:

100W

Net Weight:

205kg

Highlight:

18650 Battery Sealing Machine

Automatic Battery Sealing Machine

21700 battery production equipment

Product Description

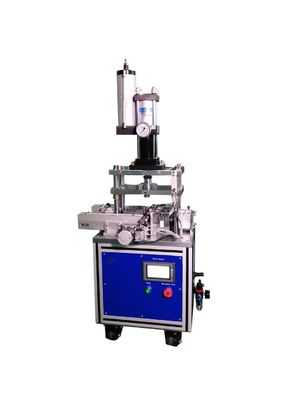

Automatic Cylindrical cell Battery Sealing Machine for 18650/21700/26650

Product Description

It is suitable for automatic sealing and automatic feeding of cylindrical battery. It has the advantages of flat sealing edge, good air tightness, high dimensional accuracy, high efficiency and good consistency through one, two and three squat sealing.

Main features:

*PLC touch screen operation, easy to set parameters, high degree of automatic;

* Through one, secondary, three squat sealing sealing, sealing edge flat, good air tightness, high dimensional accuracy, high efficiency, good consistency;

* Precision mold design ensures accurate and reliable sealing molding, solid steel structure design, stable and safe use;

* The replacement mold can process a variety of cylinder battery seals, such as 18650,26650,21700.....

* Beautiful appearance, easy maintenance with small size, easy operation, accurate molding and other advantages.

Specification

* Sealing mold: standard 18650 series packaging mold, other specifications can be selected;

* Sealing pressure: Max.3000Kg;

* Machining accuracy: ±0.1mm;

* Mold life: > 3 million times;

* Capacity: 6PCS/min;

* Power supply: 220V/50Hz;

* Power: 100W;

* Compressed air: 0.5MPa ~ 0.7MPa;

* Product size: L550 * W400 * H1250mm;

* Net weight: 205kg
