Lithium ion Battery Laboratory Electric Automatic Coin Cell Crimper
  • name
  • name
  • name
  • name
  • name

Lithium ion Battery Laboratory Electric Automatic Coin Cell Crimper

Payment Method: T/T, Western Union
Details Information
Product Description
Detail Information
Brand Name
GERUISI
Model Number
GRS-DF160
Power:
100W
Sealing Pressure:
Max 1000kg
Application:
Battery Production Line
Sealing Stroke:
30mm
Power Source:
Electric
Frequency:
50Hz
Voltage:
220V
Highlight:

Electric automatic coin cell crimper

,

220V automatic coin cell crimper

,

coin cell crimper Machine

Product Description

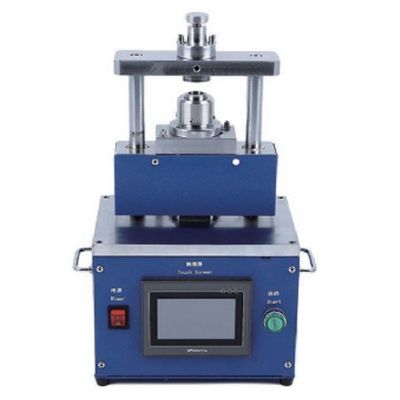

Lithium ion Battery Laboratory Electric Automatic Coin Cell Crimper
Product Description

It is mainly used for the sample production of battery material research and development in the laboratory for coin cell and capacitor scientific research sealing, and can also be used for small batch trial production in the factory. Adopting electric mode saves labor, and different molds can also be used for dry powder pressing, wet powder pressing, pressing forming, riveting and other operations.

Configuration mold: Standard configuration can be used for 20 series Coin cell battery. Some mold accessories can also be replaced and packaged 2450,2430 type battery, dismantling mold.



Main features:

* Touch screen operation, easy parameter setting, high degree of automation;

*The sealing pressure value can be set and displayed.

*Glove box Φ If there are no obstacles (skateboards) in the 360 transition chamber, it can be directly passed through the transition chamber, with small volume and convenient operation;

*Adopting electric drive, the battery seal has no vibration and no leakage;

*Precision mold design ensures precise and reliable sealing and forming, with a sturdy steel structure design that ensures stable and safe use;

*Small size, easy to operate, can be placed in a glove box for operation;

*Beautiful appearance, easy maintenance, with advantages such as small volume, convenient operation, and precise molding;

Specification

*Precise control of sealing pressure and free setting of digital input;

*Power supply: voltage single-phase 110V~220V AC ± 10%; Frequency 50Hz/60Hz; Power 100W;

*Sealing pressure: Max 1000kg, digital display can be set;

*Sealing stroke: 30mm;

*The sealing mold comes standard with CR20 packaging molds (CR2016, CR2025, CR2032), and other molds are optional.

*External dimensions: L250mm XW185mm X H450mm

*Weight: 25kg



Lithium ion Battery Laboratory Electric Automatic Coin Cell Crimper 0
Tags:

battery manufacturing equipment,

coin cell crimper Machine,

lithium battery equipment
