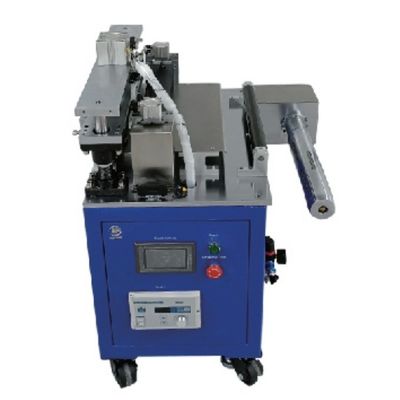

Automatic Electrode Cutting Machine Lithium Battery Cathode Anode Cutting Making

Automatic Electrode Cutting Machine Lithium Battery Cathode Anode Cutting Making

Payment Method: T/T, Western Union
Detail Information
Brand Name
GERUISI
Model Number
GRS-HQ300
Highlight:

Automatic electrode cutting machine

,

lithium Battery electrode cutting machine

,

Automatic lithium battery making machine

Product Description
Product Description
It is mainly used for single chip cutting of positive and negative electrodes of lithium batteries. The cutting length, quantity,
and speed can be arbitrarily set, and can be cut separately. This machine has an automatic unwinding function. The tension frame controls automatic unwinding and automatic stop. The speed during discharging is adjustable. The loading shaft is a pneumatic shaft, which is convenient for loading and unloading.
Features:

* Can be arbitrarily set cutting length, quantity, speed, can be cut separately;

* Automatically adjust the tension;

* Continuous cutting, fixed length and cursor tracking can be selected, suitable for multi-section cutting, the compensation of the incision can be set;

* Width in 10-300mm, length in 1-9999mm arbitrarily set;

* The machine adopts PLC man-machine interface control, easy to use and operate;

* Exquisite appearance, sheet metal adopts three-dimensional geometric design, simple and beautiful;

* Easy to operate, safe and reliable, small size.


Specification
Unwind
The unwinding air expansion shaft is fixed, and the unwinding tension is automatic unwinding with constant tension. control
Fixed length cutting speed
5-250mm/s
Chasing color cutting speed
5-150mm/s
Unwind diameter
(Max)250mm, Hairy condition≤25um
Voltage
220V/50Hz
Power
1.2KW
Compressed air
0.5Mpa ~ 0.8 Mpa
Application range
Bandwidth:300mm; Length:1×9999 mm
Device size
L1400*W800*H700mm
Weight
About240kg
