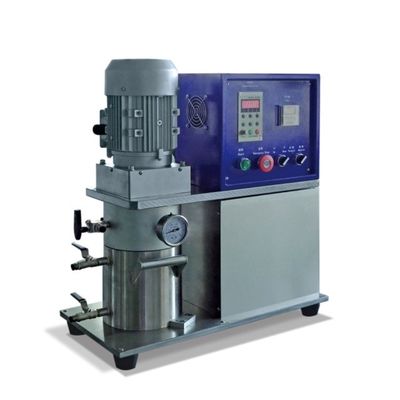

Planetary Vacuum Mixer For 1L 2L Lithium Ion Batteries Slurry Mixing

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

GERUISI

Mixer Type:

Planetary Mixer

Max. Loading Volume (L):

1 L/2L

Range Of Spindle Speed(r.p.m):

0 - 1400 R.p.m

Max. Loading Capacity:

1L/2L

Product Type:

Battery Electrode Slurry

Highlight:

Slurry Mixing Planetary Vacuum Mixer

2L Batteries Planetary Vacuum Mixer

Batteries planetary centrifugal vacuum mixer

Product Description

This product is an efficient equipment integrating vacuum mixing and dispersion, suitable for the battery positive and negative slurry mixing processes in battery experiments, as well as the mixing of powdery materials and various ceramics; Set the time, speed, and rotation angle by programming the controller
Features:
l. Adopting the industry leading soft sealing process, it can maintain the state of -0.098MPA for more than 24 hours;
2.The body of the double layer stainless steel container is refined with high-quality 304 stainless steel. After finishing with a lathe, it is polished with a precision automatic polishing machine to ensure high Accuracy;
3. The variable speed range is 0 to 1400 rpm, and the time, speed, and rotation direction are set by the programmable controller according to the application program.
4. Precision guide pillar support is adopted, and the cylinder automatically pushes the can body to open and close. Humanized design, precision and efficiency;
5.The mixing motor adopts gearbox frequency conversion adjustment, and the torque at different rotational speeds can be selected according to different processes and viscosities;
6.Exquisite appearance, three-dimensional geometric design, simple and beautiful. Small overall size, saving space

Specification

Rated power	0.75KW,220V
Mixing speed	0-1400rpm； Adjustment via frequency converter
Effective volume	GRS-JB6-1L:1L; GRS-JB6-2L: 2L
Bucket opening and closing mode	Double arm cylinder driving upper cover up
Inner dimension of material barrel	φ106mm(Inner wall diameter) * 175 (height)
Overall size	L600W300H700MM
Crown mounted	Vacuum meter, vacuum port, etc
Operating Weight	About 90KG
Timing function	The time can be set arbitrarily from 0-99 (H) to set the time
