Lab Vaccum Pouch Cell Battery Sealing Machine 200mm

Lab Vaccum Pouch Cell Battery Sealing Machine 200mm

Payment Method: T/T, Western Union
Detail Information
Brand Name
GERUISI
Model Number
GRS-YF200
Max Battery Range:
Length 200mm, Width 160mm (including Gas Pocket)
Head Temperature:
Normal Temperature~250℃, Adjustable
Highlight:

Lab Vaccum Battery Sealing Machine

,

200mm Battery Sealing Machine

,

Lab Vaccum battery making machine

Product Description
Product Description



The vacuum pre sealing machine is mainly suitable for vacuum pumping and hot pressing pre packaging of pouch cell lithium batteries after electrolyte injection and standing; This machine automatically completes the vacuum thermal packaging of the aluminum plastic shell of the battery by accurately controlling the main vacuum extraction box and pneumatic thermal sealing components.
Features:
1.The head is made of copper material, with good heat transfer effect, saving power consumption, improving work efficiency, and saving energy compared to similar products;
2.Through a perspective window, changes in the lumen can be observed during operation;
3.Can be applied to different specifications of product batteries, and easy to adjust;
4.The pressure of the upper and lower heads can be adjusted through pressure regulating valves to achieve different process parameters inquiry;
5.The cover cavity is driven by a cylinder and guided by a rotating guide sleeve, allowing for flexible movement up and down, and accurate guidance to ensure product sealing requirements;
5.Easy to operate, beautiful in appearance, small in size, and light in weight

Specification


*PLC touch screen automatic control;

* The cavity is made of aluminum alloy, corrosion resistance, solid structure;

* Adjustable vacuum degree up to -95Kpa (buyer's own vacuum pump);

* Head temperature: room temperature ~ 250℃, temperature adjustable;

* Temperature control accuracy: ±2℃;

* Heat seal pressure: 0 ~ 7Kg/cm² adjustable;

* Heat sealing time: 0 ~ 99 seconds adjustable;

* Edge width: 5±0.4mm (according to customer requirements);

* Maximum edge size: 200mm;

* Max battery range: length 200, width 160mm (including gas pocket);

* Seal thickness range: 60~300um;

* Sealing thickness accuracy (mm) : any two point package thickness difference <15um;

* Gas consumption: about 0.2L compressed gas/once per seal;

* Air pressure working speed: ≥180 times /h;

* Power: 300W heating tube, heating power consumption of about 0.6KW;

* Power supply: 220V/50Hz;

* Compressed air source: 0.5 ~ 0.8Mpa; When used in the glove box, the cylinder power source must be consistent with the working gas used in the glove box;

Equipment dimensions:

* Overall size: working section: 470mm * 485mm * 435mm;

Control box: 420mm * 325mm * 225mm;

* Weight: about 50Kg.

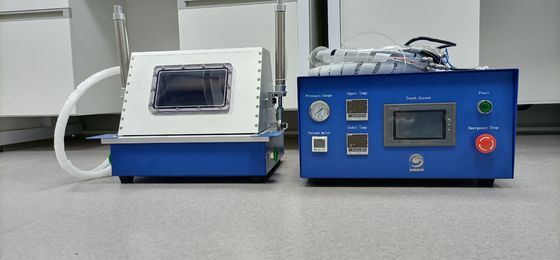

Lab Vaccum Pouch Cell Battery Sealing Machine 200mm 0
Lab Vaccum Pouch Cell Battery Sealing Machine 200mm 1
