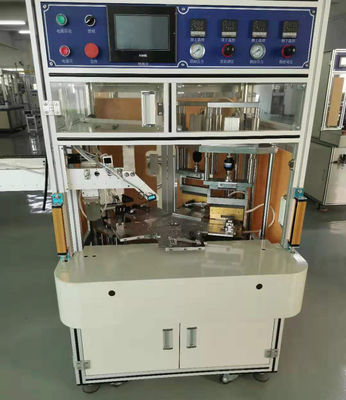

Top Side Battery Sealing Machine Manufacturing Equipment 600-700PPH

Top Side Battery Sealing Machine Manufacturing Equipment 600-700PPH

Payment Method: T/T, Western Union, T/T
Detail Information
Brand Name
GERUISI
Model Number
GRS-DCF150
Equipment Capacity::
About 600-700PPH
Conveyor Belt Width:
100-300 Mm
Sealing Height:
100-300 Mm
Application:
Battery Production Line/Battery Packaging
Highlight:

Top Side Battery Sealing Machine

,

700PPH Battery Sealing Machine

,

700PPH battery manufacturing equipment

Product Description

Main features:

This equipment is suitable for the top side sealing of the aluminum-plastic film pouch cell battery process. The equipment is manually discharged and the packaging process is completed by the following steps:

1. Top sealing part installation, 2. Side sealing part installation, 3. Short circuit measuring part installation, 4. Opening clip part installation, 5. Cutting part installation. The packaging head is mainly divided into hard seal and soft seal two kinds, according to different cell models can choose the corresponding head for production. The equipment adopts disc structure design, and through rigorous and high-precision processing and assembly efficiency, it ensures the stability and product accuracy of the production process of the equipment. Safety protection devices are used in many parts of the equipment to ensure the safety of people and equipment in the production process.



Technical parameters:

1, configuration power supply: AC 220V/50Hz; Power: 4KW

2, compressed air: ≥0.6MPa

3. Rotation direction: counterclockwise

4. Feeding method: manual

5, cutting method: mechanical hand material

6, workbench height: 750mm

7, manipulator: height 800mm; The device exceeds 300mm

8, equipment size: length * width * height ≈900 * 900 * 1600mm

9, equipment reference weight: 350Kg

10, equipment capacity: aboout 600-700PPH

11, product pass rate: 99%
