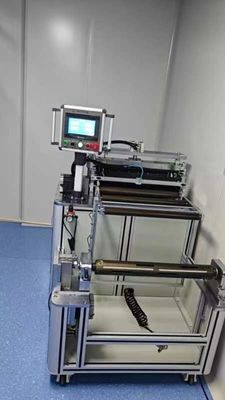

500mm Electrode Cutter Slitting Lithium Battery Manufacturing Machine

500mm Electrode Cutter Slitting Lithium Battery Manufacturing Machine

Payment Method: T/T, Western Union
Detail Information
Brand Name
GERUISI
Model Number
GRS-FT550-2
Maximum Slitting Electrode Width:
Max 500mm
Highlight:

Lithium Battery electrode cutter

,

500mm electrode cutter

,

lithium battery manufacturing machine Electrode Cutter

Product Description
Suitable electrode parameteres:



Roll diameter Max Φ 450mm
Unwinding weight Max 200kg
The inner diameter of the unwinding drum is Φ 3 "(Φ 76.2mm)
Foil width Max500mm
Thickness of foil material: Copper foil: 6-20 μ m, aluminum foil: 8-25 μ m
The thickness of the segmented polarizer is 90-250 μ m
Roll diameter Max Φ 450mm
The diameter of the winding drum is Φ 3 "(inner diameter), and the drum is provided by the user



  • Device performance specifications and parameter requirements
Suitable for meterails system Slitting process of positive and negative electrode sheets for lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide, ternary and other battery systems
Operating substrate thickness Aluminum foil (Al): 8-30um; Copper foil (Cu): 5-30um
Containing a substrate of 50-250 μ m
Operating substrate width ≦500mm
Roll surface width 550mm
Cutting width accuracy ±0.05mm
Edge quality of the strip electrode No quality defects such as curled edges, cracks, waves, wrinkles, powder loss, no stretching, exposed foil, obvious jagged edges, etc
Polar burr control Burrs after cutting the polarizer: longitudinal burrs<6 μ m (beyond the polarizer direction), transverse burrs<10 μ m (polarizer direction). Vertical burrs are detected as longitudinal burrs, while flat burrs are detected as transverse burrs
Straightness (Edge Serpentine Offset) ≤±0.2mm/m
Rolling accuracy ±0.4mm
Cutting width ≧6mm
running speed Adjustable from 1 to 50m/min
Tension control system Constant tension control, 5-200N, magnetic powder braking
Correction method Automatic EPC control, with a stroke of 100mm
Unwinding correction accuracy ±0.2mm
Maximum load capacity for unwinding 200Kg
Roll up scroll Two low tension double slip shafts, suitable for Bluetooth pole piece winding, can rotate unilaterally for easy material retrieval, slip ring width (configured according to customer needs)
Blade material 1. Tungsten steel alloy knife
2. Φ 100 * Φ 65 * 0.7/2.0mm
3. Minimum usable outer diameter for upper blade: Φ 95mm
Width of waste edge cutting in the material area ≤3mm; Double clamping rollers clamp separately, with adjustable clamping torque
Electrode vacuum cleaner 1. Knife suction device
2. The sliced floating powder is removed by a brush roller dust removal device
3. After the dust is scraped, it is sucked away and filtered by a vacuum cleaner through a negative pressure pipeline
Adjustment of cutting width Replace different spacers, randomly select two pairs of spacers and coiled tubing
Cutting blade bite amount Adjust the position of the wedge between the blade seats
